61 31 245 Removing and installing/replacing rear-window button

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove PIVOT BEARING FOR REAR WINDOW WIPER

Disconnect plug connection (1).

Feed out rear-window button (2) and place to one side.

Installation note:

Make sure plug connection (1) is correctly locked.

Make sure rear-window button (2) is correctly fitted.

To facilitate installation, coat the rear-window button and wiper pivot bearing with lubricant (e.g. low-surface-tension water or G13).

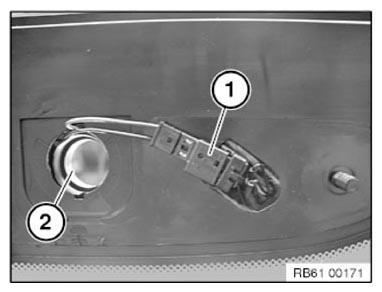

Fig 1: Identifying Rear-Window Button And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Refer to the manufacturer's safety data sheet if using G13
