41 61 060 Removing And Installing/Replacing Left Hinge For Engine Compartment Lid (Vehicles Up To 09/2011)
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Support engine compartment lid in fully opened position with suitable apparatus. Risk of injury.
IMPORTANT:
These instructions only apply to vehicles without active pedestrian protection!
Observe separate procedure for vehicles with ACTIVE PEDESTRIAN PROTECTION !
Observe separate procedure for vehicles with ACTIVE PEDESTRIAN PROTECTION !
IMPORTANT:
After screws have been slackened no lateral forces must be exerted on the engine compartment lid!
Secure engine compartment lid with a second person.
Secure engine compartment lid with a second person.

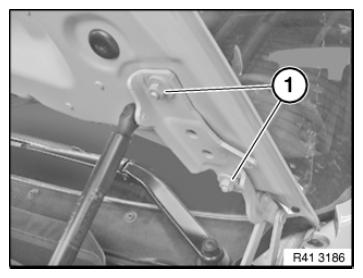

Unscrew nuts (1).
Tightening torque 41 61 1AZ .

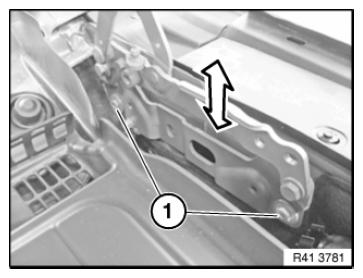

Release screws (1) and remove hinge.
Installation note:
Tightening torque 41 61 3AZ .
ADJUST hinge together with engine compartment lid.
