41 61 071 Removing And Installing/Replacing Left Hinge For Engine Compartment Lid (Active Pedestrian Protection), Vehicles Up To 09/2011

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Adhere to the following SAFETY INFORMATION so as to avoid a danger of injury by the actuator.
The BATTERY EARTH LEAD must be clamped off prior to work on the hinge or engine compartment lid!

IMPORTANT: When replacing the hinge, it is absolutely essential after installing to remove the retaining screws (1) fitted on the new hinge!
If the retaining screws are not removed after installation, active pedestrian protection will not function.

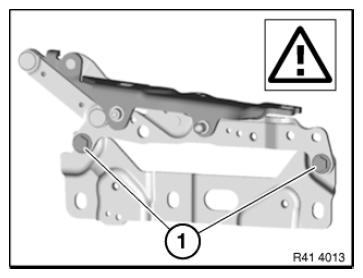

Fig 1: Identifying Actuator Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary tasks:

Disconnect BATTERY EARTH LEAD

Remove ENGINE COMPARTMENT LID

Remove ACTUATOR

NOTE: For purposes of clarity, graphic shows holder for actuator and gas pressure spring removed.

Release screws (1) and remove hinge.

Installation note:

Tightening torque 41 61 3AZ .

ADJUST hinge together with engine compartment lid.

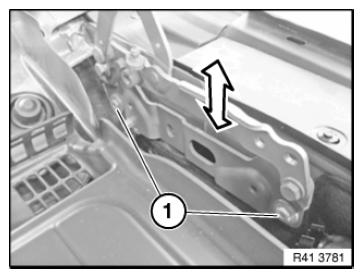

Fig 2: Adjusting Hinge

Courtesy of BMW OF NORTH AMERICA, INC.
