51 23 265 Removing and installing/replacing left or right gas pressure spring for engine compartment lid
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Danger of injury and damage!
For the following tasks, you must take the appropriate measures to support the engine compartment lid.
As an alternative, you can enlist the help of a second person to hold the engine compartment lid.
For the following tasks, you must take the appropriate measures to support the engine compartment lid.
As an alternative, you can enlist the help of a second person to hold the engine compartment lid.
Make a written record of the installation position of the gas pressure spring(s) before removing.

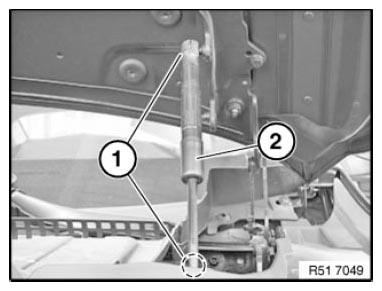

Carry out BALL SOCKET REMOVAL at both ends (1) of gas pressure spring (2).
