52 25... Replacing armrest lower section for rear seat backrest

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove ARMREST for rear seat backrest

Release retaining ring (1) on left and right.

Release screws on left and right.

Installation:

Armrest upper section is coded against incorrect installation with plastic pins (2).

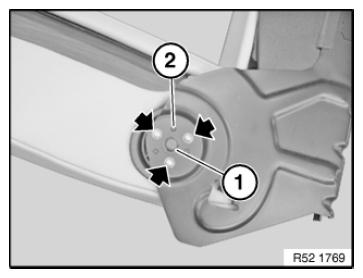

Fig 1: Identifying Retaining Ring And Plastic Pins

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

Remove COVER ON ARMREST
Remove CAP ON ARMREST
Remove DECORATIVE TRIM
Remove CAMOUFLAGE ON ARMREST
