52 25... Removing and installing/replacing cover on armrest at rear

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove DRINKS HOLDER

Release screws (1).

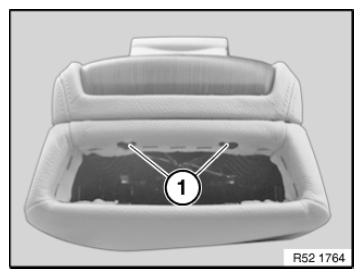

Fig 1: Identifying Drinks Holder Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove cover (2) with wooden trim.

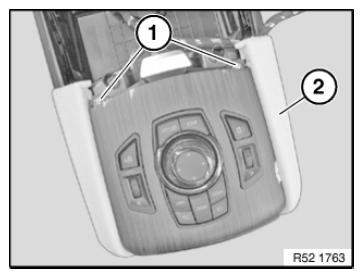

Fig 2: Identifying Armrest Storage Tray Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

Remove WOODEN TRIM .
