52 25... Removing and installing/replacing camouflage on rear armrest

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Sliding blocks (1) are spring-mounted.

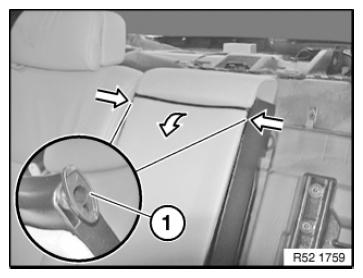

Press sliding blocks (1) on left and right inwards and tilt cover forwards.

Fig 1: Pressing Sliding Blocks On Left And Right

Courtesy of BMW OF NORTH AMERICA, INC.

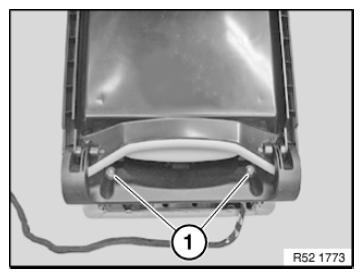

Release screws (1).

Fig 2: Identifying Rear Armrest Screws

Courtesy of BMW OF NORTH AMERICA, INC.

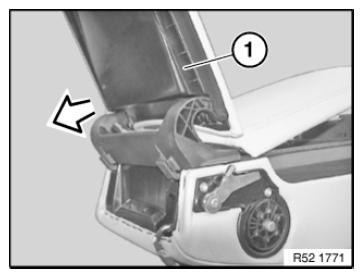

Remove cover (1) in direction of arrow.

Fig 3: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

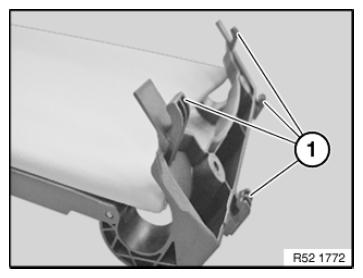

Make sure guide (1) is correctly seated in armrest.

Fig 4: Identifying Armrest Guide

Courtesy of BMW OF NORTH AMERICA, INC.
