64 11 263 Removing and installing/replacing rear compartment blower: Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove CENTRE ARMREST
Remove GEAR SELECTOR SWITCH COVER
Remove REAR STORAGE COMPARTMENT
If necessary, remove DVD PLAYER IN REAR CONSOLE

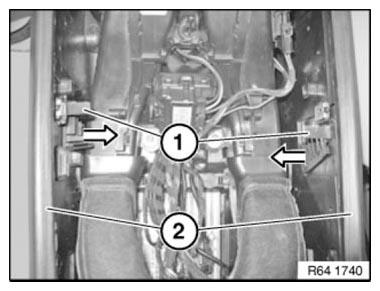

Unclip cable clips (1) from center console frame (2) on left and right and remove.

Fig 1: Removing Centre Console Frame And Cable Clips

Courtesy of BMW OF NORTH AMERICA, INC.

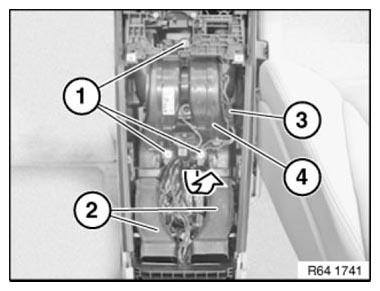

Release screws (1).

Remove air ducts (2).

Unlock plug connection (3) and disconnect.

Feed rear compartment blower (4) out of center console.

Fig 2: Removing Air Ducts And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
