51 16 216 Removing and installing (replacing) storage compartment
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove TRIM ON REAR CENTRE CONSOLE

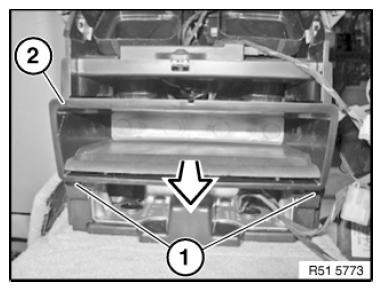

Release screws (1).
Remove storage compartment (2) in direction of arrow.
