51 16 195 Removing and installing (replacing) center armrest

Necessary preliminary tasks:

• Remove CENTRE ARMREST STORAGE COMPARTMENT
• Remove SIDE TRIM PANEL ON CENTRE CONSOLE ON LEFT/RIGHT

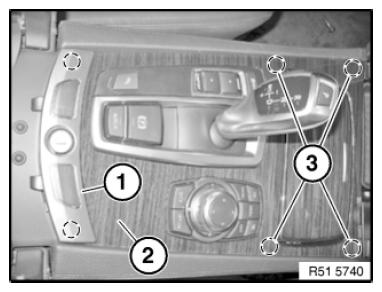

Unclip fastener trim (1).

Release screws underneath.

Unclip center console trim (2) at points (3) and remove.

Fig 1: Identifying Fastener Trim And Center Console Trim

Courtesy of BMW OF NORTH AMERICA, INC.

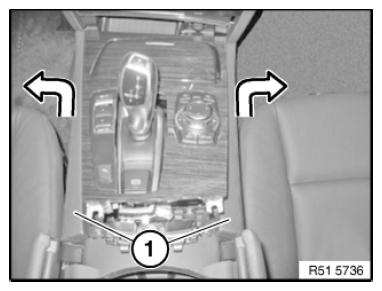

Remove trims (1) on left/right in direction of arrow.

Fig 2: Removing Trims

Courtesy of BMW OF NORTH AMERICA, INC.

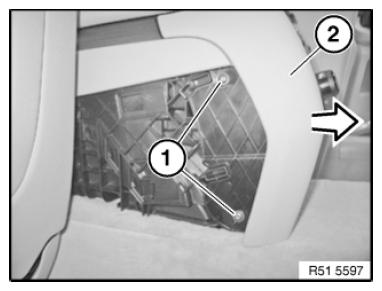

Release screws (1) on center armrest (2).

Fig 3: Identifying Centre Armrest With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

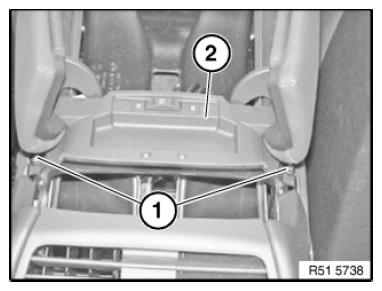

Release screws (1) on left and right sides.

Pull out rear center console trim (2) in direction of arrow.

Fig 4: Removing Rear Centre Console Trim

Courtesy of BMW OF NORTH AMERICA, INC.

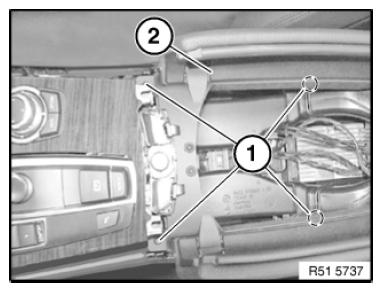

Release screws (1) and remove center armrest (2) in upward direction. Disconnect plug connection underneath.

Fig 5: Identifying Centre Armrest With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

• Replace HOTEL SETTING SWITCH
