31 35 000 Removing and installing/replacing front anti-roll bar

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT UNDERBODY PROTECTION .
Remove BOTH ANTI-ROLL BAR LINKS FROM ANTI-ROLL BAR .
F12 All-wheel drive vehicle: Remove the front stiffening plate.
F06 M6, F12 (without all-wheel drive), F13, F10-M5: Remove STIFFENING PLATE .

Release screws (1).

Tightening torque 31 35 1AZ.

Remove anti-roll bar (2) downwards.

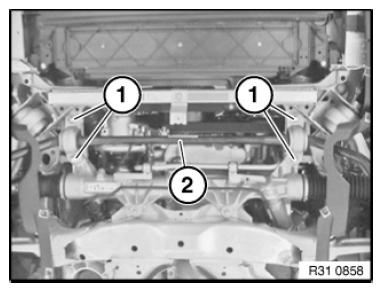

Fig 1: Identifying Anti-Roll Bar And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

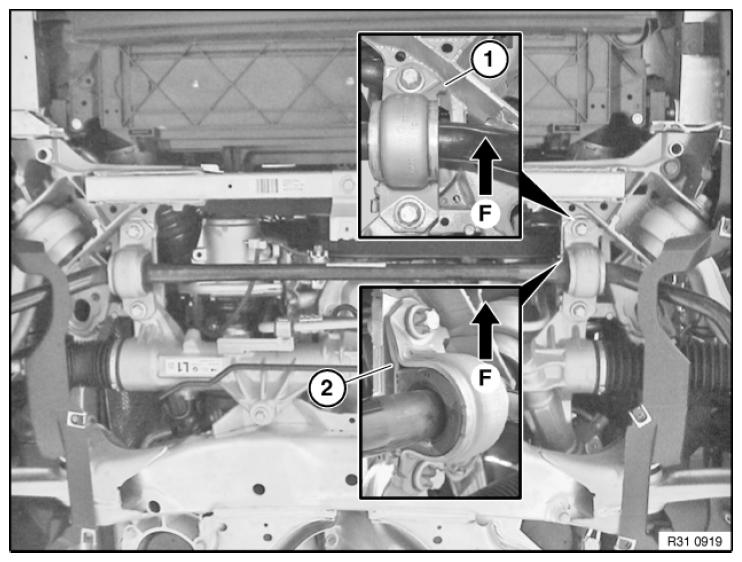

Fig 2: Identifying Anti-Roll Bar Retaining Bracket Nose And Lower Mounting Plate Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace screws.

Pay attention to installation location of retaining bracket and mounting plate!

Nose (1) on retaining bracket must point left in direction of travel
Curve (2) on lower mounting plate points to rubber bearing
