31 35 005 Removing and installing/replacing push rod (anti-roll bar link) for left/right anti-roll bar

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Observe SAFETY INSTRUCTIONS for raising the vehicle

Unscrew nuts (1).

Tightening torque 31 35 2AZ .

Remove anti-roll bar link (2).

Installation note:

Replace self-locking nut (1).

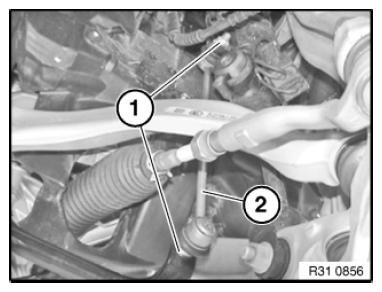

Fig 1: Identifying Anti-Roll Bar Link And Mounting Nuts
G08504656Courtesy of BMW OF NORTH AMERICA, INC.
