51 47 490 Removing and installing / replacing front underbody protection
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

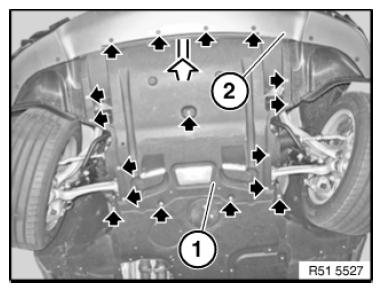

Graphic is only an example. Detail deviations depending on model or engine version are possible.
Unscrew all bolts.
Remove underbody protection (1) in direction of arrow from bumper trim (2).
Installation note:
Make sure underbody protection (1) is correctly seated.
