31 11 040 Remove and install/replace stiffening plate (all-wheel drive)
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Observe SAFETY INSTRUCTIONS
for raising the vehicle
Driving without stiffening plate is not permissible!
Driving without stiffening plate is not permissible!
Necessary preliminary tasks:
- Remove underbody protection at front and rear. See FRONT UNDERBODY PROTECTION and REAR UNDERBODY PROTECTION .
- F12: Remove front stiffening plate.

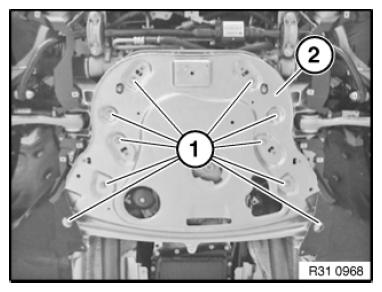

Release screws (1).
Remove thrust panel (reinforcement plate) (2).
Installation note:
Replace screws (1).
Tightening torque 31 10 2AZ .
