51 16 225 Removing and installing/replacing decorative trim on center console on left or right

Necessary preliminary tasks:

• Remove TRIM FROM CUP HOLDER .
• Remove REAR STORAGE BOX .
• E71:

  Remove KNEE PAD .

Release screws (1).

Lift decorative trim on center console (2) up and out of center console and feed towards rear out of guide (4).

Installation:

Replace faulty retainers (3).

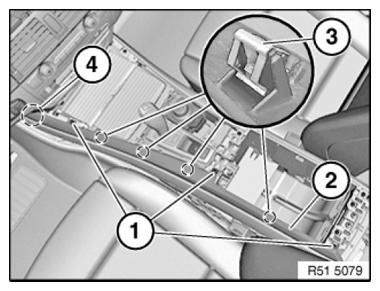

Fig 1: Identifying Centre Console, Guide, Retainers And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Guides (1) and (2) on decorative trim (3) must not be damaged.

Guides (1) and (2) must be correctly positioned in center console during fitting.

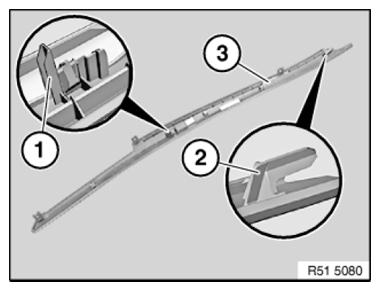

Fig 2: Identifying Decorative Trim And Guides

Courtesy of BMW OF NORTH AMERICA, INC.
