51 16 130 Removing and installing/replacing left or right knee pad

Necessary preliminary tasks:

• Remove TRIM FROM CUP HOLDER AT FRONT .

Release screws (1).

Lift knee pad (2) out of center console.

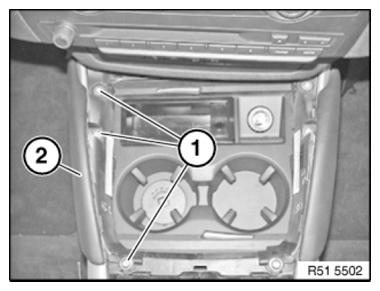

Fig 1: Identifying Centre Console Knee Pad And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.
