51 16 193 Removing and installing/replacing cover on front cupholder

Special tools required:

• 00 9 323

Necessary preliminary tasks:

• Remove CENTRE CONSOLE COVER (GEAR SELECTOR SWITCH) .
• Release CENTRE CONSOLE .

Unlock latch mechanisms (2) with special tool 00 9 323 .

Feed out cover on cupholder (1) towards rear.

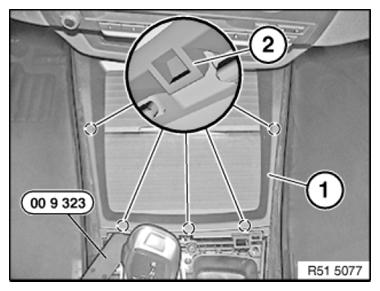

Fig 1: Removing Latch Mechanisms Using Special Tool (00 9 323)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

First feed cover on cupholder into guides (1), then press down onto center console.

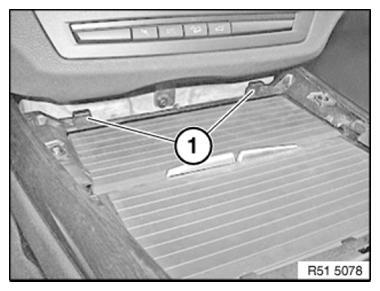

Fig 2: Identifying Centre Console Guides

Courtesy of BMW OF NORTH AMERICA, INC.
