51 45 263 Removing and installing cover on right instrument panel (radio/glove box)

Special tools required:

IMPORTANT: Risk of damage!
When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Optional equipment CIC:

A hard disk is installed in the Car Information Computer (CIC).

Carry out mechanical work on the CIC and adjacent components with care.

Avoid subjecting the CIC to shaking/shocks.

Necessary preliminary tasks:

Depending on equipment in upper insert:

Unclip trim for A/C - heater control panel (1) with special tool 00 9 340 , as illustrated

Fig 1: Removing Trim Using Special Tool (00 9 340)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Marked retaining lug on climate/heater control panel cover (1) must not be damaged.

Fig 2: Locating A/C Operator Unit Trim Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) from right instrument panel cover (2).

Unclamp cover in marked area and carefully remove from the driver's side over the center console toward the rear.

WARNING: Absolutely avoid scratches or damage of the surfaces.

Installation:

Renew faulty retaining clips.

Replacement

Modify retaining clip.

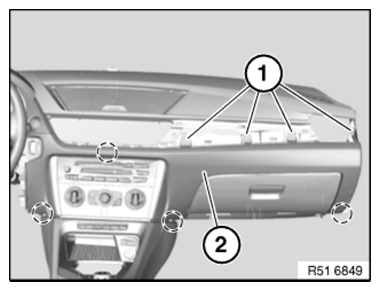

Fig 3: Identifying Right Instrument Panel Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
