64 22 139 Removing and installing/replacing right fresh air grille
Special tools required:
- 00 9 325
- 64 1 030
Proceed with care so as to avoid damaging the fresh air grille.
Open slats of fresh air grille (1).

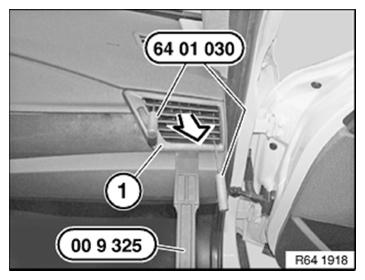

Attach special tool 64 1 030 on both sides in the corresponding fixtures as shown.
Pull out fresh air grille (1) evenly in the direction of the arrow. (If necessary, use the aid of special tool 00 9 325 .)
Installation:
Retaining clip (1) on fresh air grille (2) must not be damaged.
