51 45 266 Removing and installing/replacing instrument panel trim on right

Special tools required:

IMPORTANT: Risk of damage!
When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Lever out the cover (1) on the marked points with special tool 00 9 325 .

Disconnect plug connection and remove cover (1).

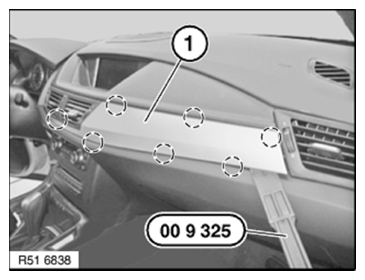

Fig 1: Levering Out Instrument Panel Cover With Special Tool (00 9 325)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Renew faulty retaining clips.

Replacement

Modify retaining clip.

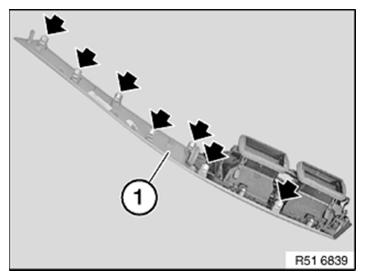

Fig 2: Locating Cover Retaining Clips

Courtesy of BMW OF NORTH AMERICA, INC.
