51 45 180 Removing and installing/replacing instrument panel trim, bottom left

IMPORTANT: Risk of damage!
When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Necessary preliminary tasks:

Release screws (1) from lower dashboard trim panel (2).

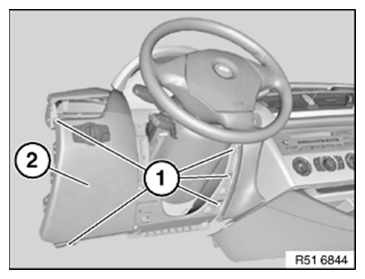

Fig 1: Identifying Lower Dashboard Trim Panel And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release plug connection (1) on light switch (2) and disconnect.

Remove lower instrument panel trim.

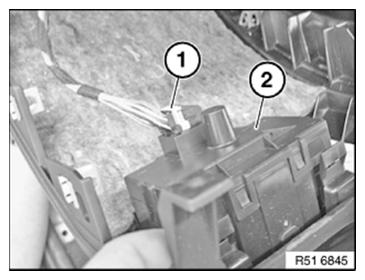

Fig 2: Identifying Light Switch And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement
