64 22 137 Removing and installing or replacing left fresh air grille

Special tools required:

Proceed with care so as to avoid damaging the fresh air grille.

Open the fins of the fresh air grille (1).

Attach special tool 64 1 030 to the respective fixtures on both sides as shown.

Pull out fresh air grille (1) evenly in the direction of the arrow.

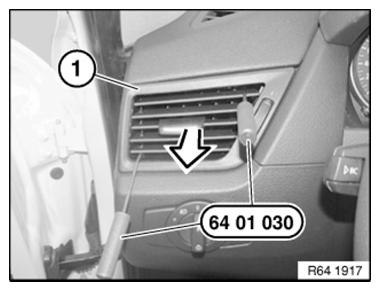

Fig 1: Pulling Out Fresh Air Grille With Special Tool (64 1 030)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining clip (1) on fresh air grille (2) must not be damaged.

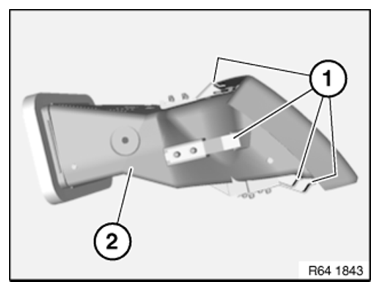

Fig 2: Identifying Retaining Clips On Fresh Air Grille

Courtesy of BMW OF NORTH AMERICA, INC.
