11 65 022 Removing and installing/replacing exhaust-gas turbocharger for cylinders 1-3 (N54)

Necessary preliminary tasks:

Remove both catalytic exhaust-gas converters. See REMOVING CATALYTIC CONVERTER FOR CYLINDERS 1-3 and REMOVING CATALYTIC CONVERTER FOR CYLINDERS 4-6 .
Remove RIGHT ENGINE SUPPORT ARM
Remove COOLANT PUMP
Unlock coolant hose from coolant thermostat to coolant pump and detach
Remove right CHARGE-AIR DUCT
Remove AIR DUCT , cylinders 1-3

Release screws (2).

Tightening torque 11 42 7AZ .

Installation:

Replace seal.

Release screw (1).

Tightening torque 11 42 8AZ .

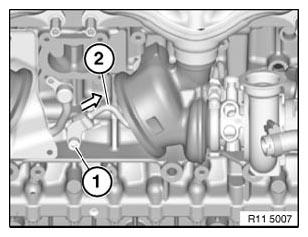

Remove oil return line (3) in direction of arrow.

Installation:

Replace O-ring.

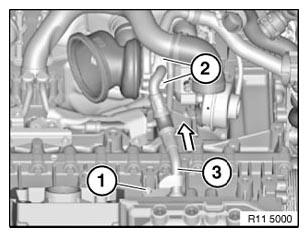

Fig 1: Identifying Screws And Oil Return Line

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage!
Where necessary, to release the coolant feed lines (3 and 4), do not place pliers on the pipes.

Fig 2: Identifying Coolant Feed Lines And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

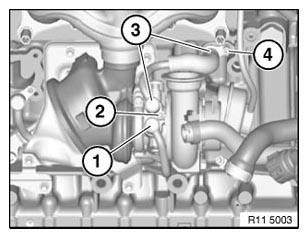

Release screws (1 and 2).

Tightening torque 11 53 10AZ .

If necessary, release coolant feed lines (3 and 4) with suitable pliers at connection.

Installation:

Replace O-rings.

NOTE: For purposes of clarity, the illustration shows the released coolant feed lines removed.

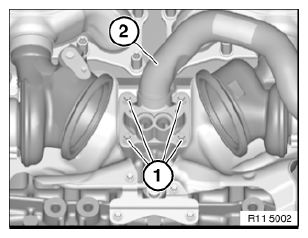

Release screws (1).

Tightening torque 11 53 3AZ .

Remove feed line (2).

Installation:

Replace seal.

Fig 3: Identifying Feed Line And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage!

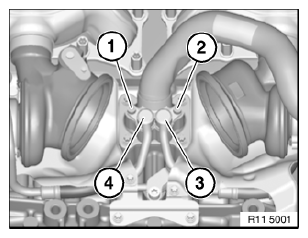

Where necessary, to release the coolant feed and return lines (1 and 3), do not place pliers on the pipes.

Release screw (2).

Fig 4: Identifying Coolant Feed/Return Lines And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque 11 53 8AZ .

If necessary, release coolant feed line (1) with suitable pliers at connection.

Installation:

Replace O-rings.

If necessary, release coolant return line (3) with suitable pliers at front connection.

Release screw (4).

Tightening torque 11 53 9AZ .

If necessary, release coolant return line (3) with suitable pliers at rear connection and remove.

Installation:

Replace O-rings.

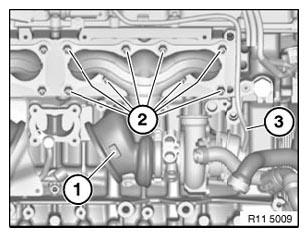

Release screws (1).

Tightening torque 11 65 2AZ .

Remove retaining plate (2).

Release screws (3).

Tightening torque 11 65 2AZ .

Fig 5: Identifying Retaining Plate And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage!
Carefully swing out heat shield (2) in direction of arrow.

Remove heat shield (2) in direction of arrow.

NOTE: Coolant feed line (1) can be removed with heat shield (2).

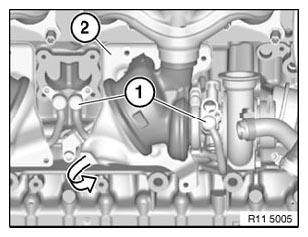

Fig 6: Identifying Heat Shield And Coolant Feed Line

Courtesy of BMW OF NORTH AMERICA, INC.

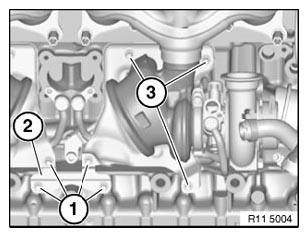

Release screws (1).

Tightening torque 11 65 3AZ .

Set holder (2) down on cylinder head cover.

Fig 7: Identifying Screws And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

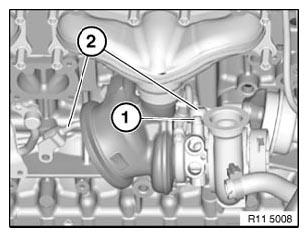

Release screw (1).

Tightening torque 11 42 4AZ .

Release oil feed line (2) in direction of arrow.

Installation:

Replace O-ring.

Fig 8: Identifying Screw And Oil Feed Line

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 11 42 5AZ .

IMPORTANT: Risk of damage!
Where necessary, to release the oil feed line (2), do not place pliers on the pipe.

Fig 9: Identifying Oil Feed Line And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, release oil feed line (2) with suitable pliers at connection and remove.

Installation:

Replace O-rings.

Detach vacuum hose (3) from vacuum unit (wastegate valve).

Unscrew nuts (2).

Tightening torque 11 65 1AZ .

Remove turbocharger (1) downwards.

IMPORTANT: Risk of damage!
Do not misuse linkage of vacuum unit (wastegate valve) to transport turbocharger (1)!

Fig 10: Identifying Turbocharger, Vacuum Hose And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace graphite sealing rings (1).

Fig 11: Identifying Sealing Rings

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Clear fault memory in DME control unit.

Carry out BMW LEAK TEST for intake system.

Observe DME control unit instructions.
