22 11 100 Replacing right engine support arm (N54)
Necessary preliminary tasks:
- Secure engine in INSTALLATION POSITION
- Remove REAR UNDERBODY PROTECTION
- Remove RIGHT COVER
- Remove EXHAUST SYSTEM .
- Remove CATALYTIC CONVERTER , cylinders 1-3

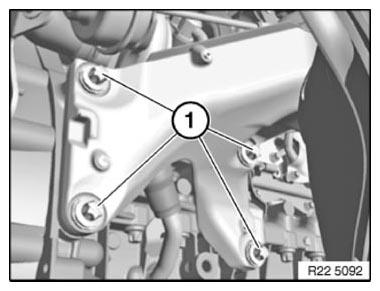

Release screws (1).
Remove engine support arm.
Tightening torque 22 11 3AZ .
