41 62 000 Rear Lid Removal And Installation
WARNING: This page is about a different variant/trim than selected.
Read contents of BODY, GENERAL .
Necessary preliminary tasks:
- Remove PANEL FOR REAR LID
- Disconnect all plug and socket cable connections on rear lid.
Carry over the work step shown symmetrically to the other side of the vehicle.

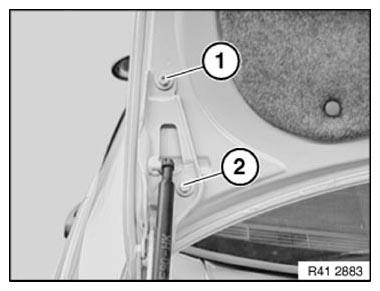

Slacken screws (1)
Unfasten screws (2).
Tightening torque 41 62 1AZ .
Remove rear lid.
Installation:
Adjust REAR LID .
