41 62 014 Adjusting Rear Lid

Read contents of BODY, GENERAL .

The BODY GAP DIMENSIONS serve as the basis for adjustment work.

Make unpainted surfaces visible by also moving the hinges. Touch these up in the appropriate colour.

Slacken screws (1) and (2) on rear lid hinge to rear lid until such stage that rear lid can still be moved.

Adjust rear lid.

Retighten all screws.

Tightening torque 41 62 1AZ .

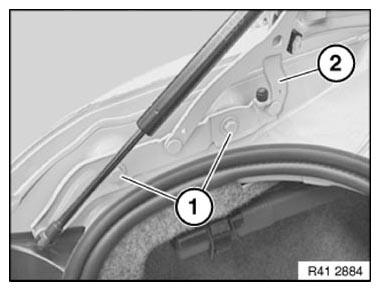

Fig 1: Identifying Screws On Rear Lid Hinge

Courtesy of BMW OF NORTH AMERICA, INC.

Adjusting height of rear lid in relation to side panel:

Slacken screws (1) on rear lid hinge to side panel until such stage that rear lid can still be moved.

Adjust rear lid.

Retighten all screws.

Tightening torque 41 62 3AZ .

Adjust REAR LID LOCK .

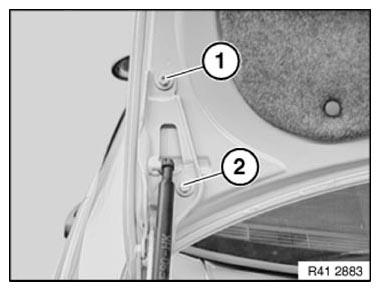

Fig 2: Identifying Screws On Rear Lid Hinge To Side Panel

Courtesy of BMW OF NORTH AMERICA, INC.
