33 31 503 Lowering/raising rear axle support (universal lifter)

WARNING: This page is about a different variant/trim than selected.

Special tools required:

WARNING: Failure to comply with the following instructions may result in the vehicle slipping off the vehicle hoist and critically injuring other persons.
Load the luggage compartment with a minimum of 100 kg before lowering/removing the rear axle support. This prevents the vehicle from tilting or sliding off the vehicle hoist!
When supporting components, make sure that:

the vehicle can no longer be raised or lowered
the vehicle does not lift off the locating plates on the vehicle hoist.

IMPORTANT: Before lowering/removing rear axle support:
Observe SAFETY INSTRUCTIONS for raising the vehicle
In order to avoid damage to vehicle hoist, perform weight compensation on vehicle.

Necessary preliminary tasks

Remove both REAR COIL SPRINGS .
If necessary, remove trailing links.

Press brake pedal down to floor and secure with pedal support.

NOTE: The pedal support may only be released when the brake lines are reconnected.
This prevents brake fluid from emerging from the expansion tank and air from entering the system when the brake lines are opened.

Fig 1: Securing Pedal Support

Courtesy of BMW OF NORTH AMERICA, INC.

Position an oil sump underneath to catch brake fluid.

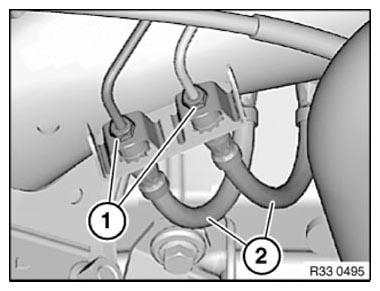

Release banjo bolts (1), counter supporting brake hoses (2) at square head in the process.

Tightening torque 34 32 1AZ .

Disconnect brake hoses (2) and seal off with seal plugs.

Installation note:

Make sure brake hoses are laid without tension and with sufficient distance to adjoining components.

Fig 2: Identifying Brake Hoses And Banjo Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip the cable for the pulse sensor and the ride height sensor/brake pad wear sensor on the side of the rear axle support.

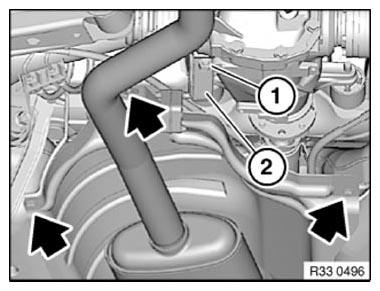

Slacken nut (1).

Turn holder (2) for exhaust system towards rear.

Release sheet metal nuts and bolts (arrows).

Place heat shield on exhaust system.

Fig 3: Locating Exhaust Systems

Courtesy of BMW OF NORTH AMERICA, INC.

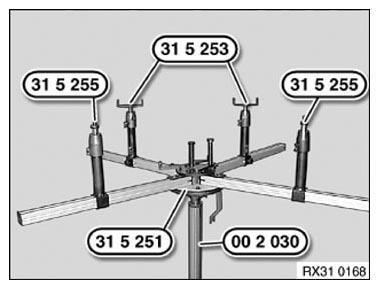

Engage special tool 31 5 251 with a 2nd person helping completely on workshop jack 00 2 030 .

Insert special tools 31 5 255 in telescopic supports of a profile rail pair.

Insert special tools 31 5 253 in telescopic supports of other profile rail pair.

NOTE: In a profile rail pair, two profile rails are connected to one another by gearing.

Fig 4: Identifying Workshop Jack

Courtesy of BMW OF NORTH AMERICA, INC.

The jacking points on the left side are shown.

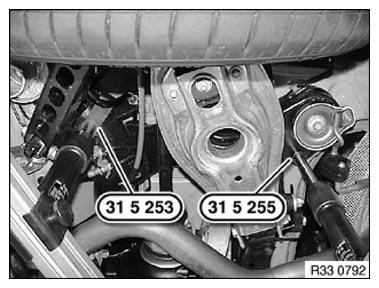

Align special tools 31 5 253 and 31 5 255 to rear axle support.

Support rear axle support by operating workshop jack 00 2 030 .

IMPORTANT: The center of gravity of the rear axle must be positioned centrally over the workshop jack.
Tie down rear axle support 33 5 206 to the special tool 31 5 251 using a tensioning strap!

Fig 5: Supporting Rear Axle Support Using Tool

Courtesy of BMW OF NORTH AMERICA, INC.

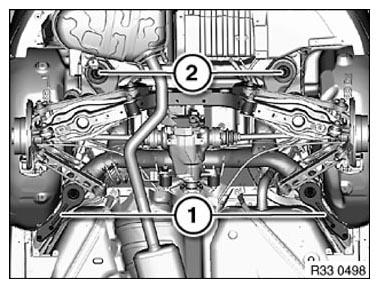

Remove COMPRESSION STRUTS (1).

Release screws (2) and swivel/remove stop plates to one side.

Tightening torque 33 33 1AZ .

Lower rear axle support.

Installation note:

Observe screw length.

A longer screw (with shim) may be fitted at the rear left!

Check threads for damage; if necessary, repair with HELICOIL THREAD INSERTS .

Fig 6: Identifying Compression Struts And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

First fit COMPRESSION STRUTS (1), then tighten screws (2).

After installation:

BLEED BRAKE SYSTEM .
