33 53 000 Removing and installing/replacing rear left or right coil spring

WARNING: This page is about a different variant/trim than selected.

Special tools required:

IMPORTANT: Both coil springs on the relevant axle must be replaced in the event of corrosion breakage.
The spring pads at the top and bottom must also be renewed when replacing the coil springs.
Avoid damaging the coil spring coating.

NOTE: The coil spring is allocated in the Electronic Parts Catalogue (EPC) under the item "Spring table" after the vehicle identification number has been entered and the optional equipments of the car have been selected.

WARNING: Before using the special tool 33 5 010 take care to read through the Owner's Handbook!
All the safety precautions and instructions contained in the Owner's Handbook must be strictly observed!
Failure to observe these safety precautions and instructions increases the risk of serious physical injury, damage to your health and damage to property and equipment!

IMPORTANT:

Prior to each use, check the special tools for defects, modifications and operational reliability.
Damaged/modified special tools must not be used!
No changes or modifications may be made to the special tools!
These special tools are intended solely for the purpose of tightening and relieving cylindrical and tapered suspension springs.
Keep special tools dry, clean and (down to the spindle) free from grease.
Impact screwdrivers are prohibited!
Do not compress coil spring to full extent.

Installation note:

All screws, nuts, bolts and hose clamps removed during the repair must be replaced.
Retaining elements on chassis and suspension and steering parts must be replaced.

Necessary preliminary tasks

Remove REAR WHEEL .

Removal

Insert lower spring cup 33 5 012 centrally into coil spring and turn to lowest winding.

Guide spindle 33 5 013 , 33 5 014 , 33 5 015 from below through the camber link and the lower spring cup 33 5 012 .

Fig 1: Inserting Lower Spring Cup Centrally Into Coil Spring

Courtesy of BMW OF NORTH AMERICA, INC.

Insert top spring cup 33 5 011 sideways into coil spring and turn to the uppermost winding.

IMPORTANT: Make sure spindle (hexagonal) is correctly seated in upper spring cup 33 5 011 !

Pull spindle 33 5 013 down.

Fig 2: Inserting Top Spring Cup Sideways Into Coil Spring

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Danger of injury!
Make sure coil spring is correctly positioned in spring cups.

Fig 3: Identifying Coil Spring

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Centre special tools 33 5 011 , 33 5 012 , 33 5 013 , 33 5 014 , 33 5 015 to achieve the greatest possible contact surface with the coil spring.

Check installed position of the special tool 33 5 011 , 33 5 012 and 33 5 013 , 33 5 014 , 33 5 015 , and correct as needed.

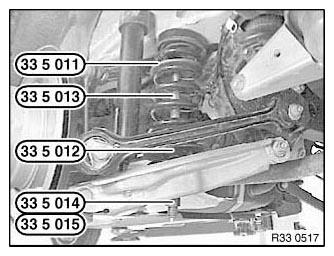

Fig 4: Checking Installed Position Of Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten coil spring using special tools 33 5 016 and 33 5 020 , gripping the spindle of the spring tensioner with special tool 33 5 017 .

Remove coil spring upwards.

Fig 5: Tightening Coil Spring Using Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, relieve tension on coil spring.

IMPORTANT: Replacement only:

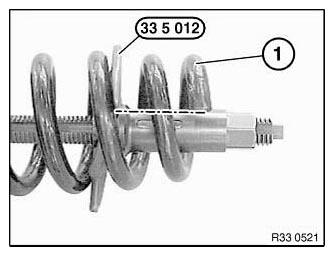

Bottom end of coil spring (1) must be flush with opening of spring cup 33 5 012 .

Fig 6: Removing Tension On Coil Spring

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

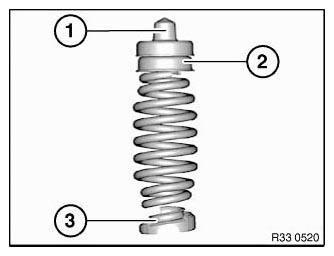

Check spring pads (2, 3) for damage.

Remove spring cup (1) and position with upper spring pad (2) on coil spring.

NOTE: Upper spring pad (2) must come into contact with end of coil spring.

Equipment specification with bad-road package: Install adapter as well.

Fig 7: Identifying Spring Pad Components

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Observe the following when installing and relieving tension on coil spring:

Lower spring pad must be positively seated in the designated receptacle in the camber arm
NOTE: Otherwise there is a risk of the coil spring jumping out sideways.
Lower spring pad must come into contact with end of coil spring (see arrow)
Lower spring pad must rest flush on last coil (see broken line)

Fig 8: Locating Lower Spring Pad

Courtesy of BMW OF NORTH AMERICA, INC.

Align coil spring by way of spring cup to opening in side member and relieve tension.

Remove special tools 33 5 011 , 33 5 012 and 33 5 013 , 33 5 014 , 33 5 015 .

Fig 9: Aligning Coil Spring

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Check HEADLIGHT ADJUSTMENT , correct if necessary.
