33 33 001 Replacing left or right rear axle carrier compression strut
WARNING: This page is about a different variant/trim than selected.
IMPORTANT:
Observe SAFETY INSTRUCTIONS
for raising the vehicle
Driving without compression struts is not permitted!
Risk of damage!
The rear axle carrier must be supported at the front is both compression struts have to be replaced!
Driving without compression struts is not permitted!
Risk of damage!
The rear axle carrier must be supported at the front is both compression struts have to be replaced!
Necessary preliminary tasks
- Remove UNDERBODY COVER .

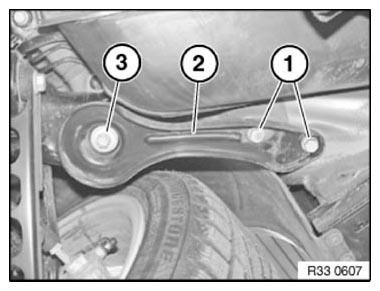

Release screws (1).
Installation:
Replace screws.
Tightening torque 33 33 2AZ .
Release screw (3) and remove compression strut (2).
Installation:
Check threads for damage; if necessary, repair with HELICOIL THREAD INSERTS .
Tightening torque 33 33 1AZ .
