24 00 023 Removing and installing automatic transmission (GA8HP70Z) (X6 50i 2011-13)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT:

After completion of repair work, check TRANSMISSION OIL LEVEL .

Use only the approved transmission oil:

ATF oil Shell L12108* .............. BMW part number 83 22 2 152 426

* Can be substituted by the lifetime oil "ATF -3".............. BMW part number 83 22 2 305 397

Failure to comply with this requirement will result in serious damage to the automatic transmission!

Necessary preliminary tasks:

Disconnect the BATTERY
Secure engine in INSTALLATION POSITION
If necessary, remove FAN COWL
Remove underbody protection at FRONT and REAR
Remove REINFORCEMENT PLATE
Remove EXHAUST SYSTEM
Remove FRONT PROPELLER SHAFT
Detach PROPELLER SHAFT

Vehicles with Adaptive Drive:

Release screws (1).

Secure line (2) under cross-brace (3).

Remove cover (4).

Fig 1: Identifying Cross-Brace, Cover And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) and remove crankshaft sensor.

Disengage cable from holder (2).

Fig 2: Identifying Crankshaft Sensor Mounting Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release connector (1) by turning and disconnect
Release cable from brackets
Insert special tool 24 2 390 (cap) in sealing cup.

These tasks are described in NOTES ON MECHATRONICS

(Important: Observe important note)

Fig 3: Disconnecting Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Disconnect hydraulic lines (2) to transmission oil cooler.

Installation note:

Replace sealing rings.

Fig 4: Identifying Screw And Hydraulic Lines

Courtesy of BMW OF NORTH AMERICA, INC.

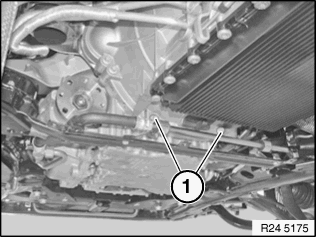

Release screws (1).

Tightening torque: see Fig 6.

Fig 5: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 6: Tightening Torque 24 00 1AZ

Courtesy of BMW OF NORTH AMERICA, INC.

Crank engine at vibration damper until screw (1) is visible in recess.

Release all 6 screws (1) on torque converter.

Tightening torque: 56 Nm

NOTE:

Replace converter screws.

(Remove adhesive residue from thread, if applicable)

Fig 7: Identifying Torque Converter Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Press special tool 24 1 380 together and insert into recess in transmission housing.

Fig 8: Inserting Special Tool 24 1 380 In Transmission Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws.

Tightening torque: 38 Nm

Release screw (1).

Tightening torque: 68 Nm

Remove cross member.

Fig 9: Removing Crossmember

Courtesy of BMW OF NORTH AMERICA, INC.

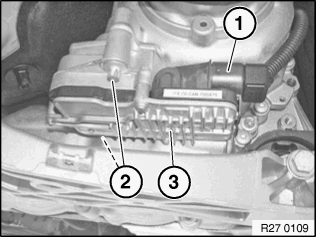

Disconnect connector (1) from transfer box control unit (3) (longitudinal torque module).

Fig 10: Identifying Connector And Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Remove earth strap (2).

Fig 11: Identifying Ground Strap And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Lower engine with transmission.

Secure engine and transmission in lowered position with engine bridge.

Then support transmission.

Supporting transmission:

Support transmission with special tools 23 4 050, 00 2 030.

Secure transmission to mounting with tensioning strap (1).

Tasks are described in Gearbox holder.

After completion of work, check transmission oil level.

Fig 12: Supporting Transmission

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws.

Tightening torque: Fig 14

Unflange transmission.

Fig 13: Locating Transmission Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 14: Tightening Torque 24 00 1AZ

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Bore hole (1) in drive plate must be accessible from recess on engine oil sump.

Check that fitting sleeves (2) are correctly fitted.

Replace damaged fitting sleeves.

Fig 15: Identifying Driving Plate Bore Hole And Fitting Sleeves

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Rotate torque converter until bore hole in torque converter is flush with bore hole in drive plate.

Flange-mount transmission to engine.
