11 00 670 Securing engine in installation position (N63)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 0 200
00 0 202
00 0 204
00 0 208
00 0 451
00 0 452
11 0 000

See MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .

See ENGINE - SPECIAL TOOLS (N54, N63) .

WARNING: Risk of injury!

Observe following instructions relating to special tool:

Prior to each use, check the special tools for defects, modifications and operational reliability.
Damaged/modified special tools must not be used!
No changes or modifications may be made to the special tools!
Keep special tools dry, clean and free of grease.

Necessary preliminary tasks:

Secure engine bonnet/hood in service position
Remove intake filter housing . See 13 71 030 REMOVING AND INSTALLING BOTH INTAKE FILTER HOUSINGS (N63) .

Assemble cross member 00 0 200 with special tools 00 0 202, 00 0 204, 00 0 208.

Modification:

Replace profile strips with special tools 00 0 451.

Replace front supports with special tools 00 0 452.

NOTE: Ensure that the longer feet of special tools 00 0 452 point to the middle of the vehicle.

Fig 1: Identifying Special Tools (00 0 200, 00 0 451 And 00 0 452)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The support points on the left side are shown.

Position transverse member 00 0 200 with a 2nd person helping on designated areas (1, 2).

NOTE: Make sure that the front supports 00 0 452 are correctly positioned on the support carriers.

Fig 2: Positioning Transverse Member With 2nd Person Helping On Designated Areas

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Avoid a change of engine position in the transverse or longitudinal direction.

Always make sure there is sufficient clearance between the engine (or its attachment parts) and the body.

IMPORTANT: Risk of damage!

With the aid of an assistant and the supports (1), place cross member 00 0 200 on the screw connections of the side panels.

Secure special tool 11 0 000 to spindle 00 0 202.

Attach suitable chains to special tool 11 0 000 and suspend from both engine suspension eyelets.

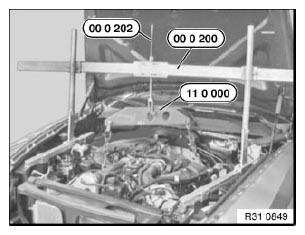

Fig 3: Attaching Suitable Chains To Special Tool And Suspend From Both Engine Suspension Eyelets

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Risk of injury!

Tighten down all adjusting screws and nuts on cross member 00 0 200.

Fig 4: Identifying Special Tools (00 0 200, 00 0 451 And 00 0 452)

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Tightening torque 22 11 2AZ, see 22 11 ENGINE SUSPENSION

Raise engine approx. 10 mm with transverse member.

Installation:

Replace self-locking nuts.

Fig 5: Identifying Engine Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.
