51 47 490 Removing and installing/replacing front underbody protection
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Pictures created using the X6 3.0 i as an example. There may be differences in detail in the case of other models.

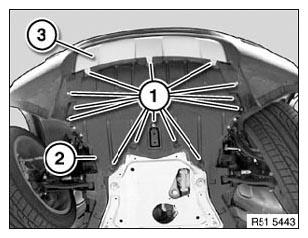

Release screws (1).
Pull forward assembly underside protection (2) under bumper trim (3) and remove.
Installation:
Centre underbody protection (2) and tighten down screws (1).
