61 71 061 Replacing fluid reservoir for windshield washer system

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Remove front underbody protection. See 51 47 490 REMOVING AND INSTALLING / REPLACING FRONT UNDERBODY PROTECTION

Partially remove front left wheel arch trim. See 51 47 161 REMOVING AND INSTALLING / REPLACING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM

Remove bottom left cover.

NOTE: Washer fluid will escape when the windshield washer pump is pulled out. Have a suitable container and cleaning cloth ready. Observe filling capacities of fluid reservoir. Refer to GENERAL ELECTRICAL SYSTEM - TECHNICAL DATA - 745i .

Remove level switch for windshield washer system, windshield washer pump and if necessary washer pump of headlight cleaning system from fluid reservoir and set to one side. Refer to 61 31 492 REPLACING LEVEL SWITCH FOR WINDSHIELD WASHER SYSTEM , 61 67 010 REMOVING AND INSTALLING/REPLACING WASHER PUMP OF HEADLIGHT CLEANING SYSTEM and 61 71 100 REMOVING AND INSTALLING/REPLACING WINDSHIELD WASHER PUMP .

NOTE: Lines remain connected.

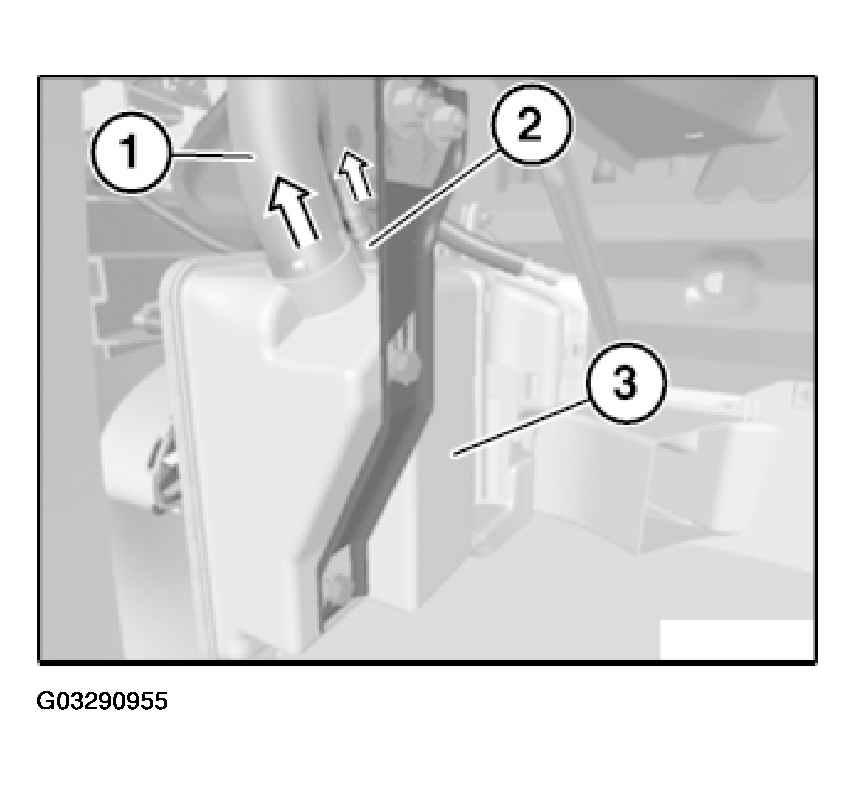

Pull filler channel (1) out of fluid reservoir (3).

Fig 1: Detaching Vent Hose From Fitting On Fluid Reservoir

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace sealing ring on filler channel (1).

Detach vent hose (2) from fitting on fluid reservoir (3).

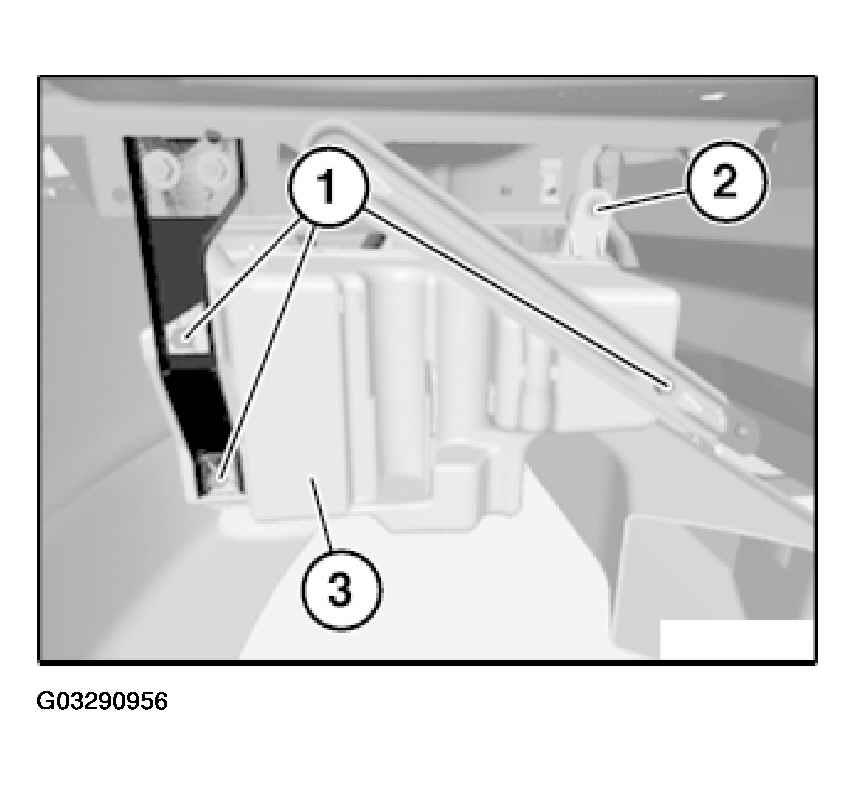

Release screws (1).

Fig 2: Removing Fluid Reservoir

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (2) and remove fluid reservoir (3) towards bottom.

Installation:

Tightening torque (screws and nuts) = 5 Nm.

Installation:

Replace sealing rings and strainers of washer pumps.

Coat sealing rings of washer pumps with antiseize agent.

Lay washer pump lines without kinks and clip into holders on fluid reservoir.

Fill fluid reservoir for windshield washer system. Observe filling capacities. Refer to GENERAL ELECTRICAL SYSTEM - TECHNICAL DATA - 745i .
