61 67 010 Removing and installing/replacing washer pump of headlight cleaning system

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Drain fluid reservoir for windshield washer system
Remove front underbody protection. See 51 47 490 REMOVING AND INSTALLING / REPLACING FRONT UNDERBODY PROTECTION
Detach front left wheel arch trim in front area and fold back.
Remove bottom left cover.

Disconnect plug connection (1)

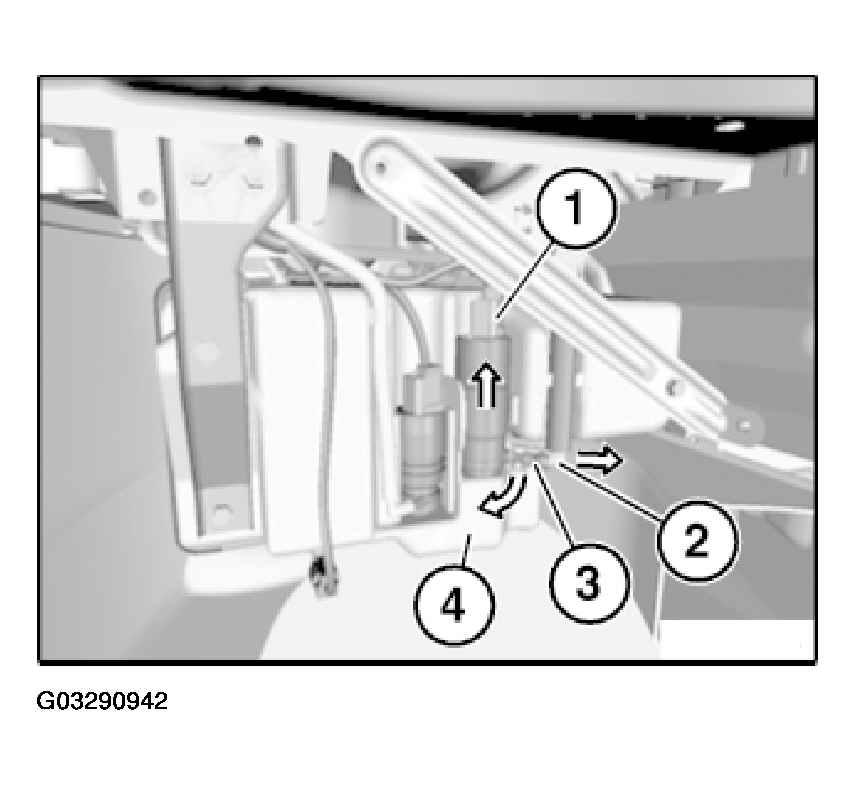

Fig 1: Removing Washer Pump

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock hose (2) and detach from washer pump of headlight cleaning system (3).

Turn washer pump of headlight cleaning system (3) in direction of arrow and pull up out of fluid reservoir for windshield washer system (4).

Installation:

Replace strainer for washer pump of headlight cleaning system.

If necessary, coat sealing ring of washer pump for headlight cleaning system with antiseize agent.

Ensure hose is laid without kinks.
