61 71 100 Removing and installing/replacing windshield washer pump

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Drain fluid reservoir for windshield washer system

Remove front underbody protection. See 51 47 490 REMOVING AND INSTALLING / REPLACING FRONT UNDERBODY PROTECTION

Detach front left wheel arch trim in front area and fold back.

Remove bottom left cover.

Disconnect plug connection (1).

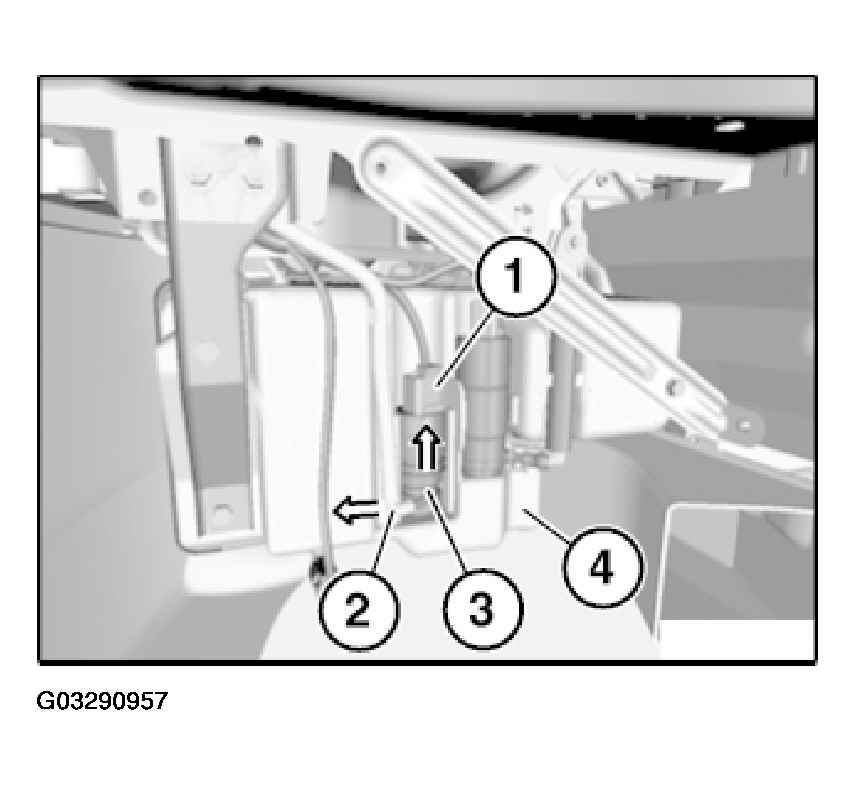

Fig 1: Removing Windshield Washer Pump

Courtesy of BMW OF NORTH AMERICA, INC.

Detach hose (2) from windshield washer pump (3).

Pull windshield washer pump (3) up and out of fluid reservoir for windshield washer system (4).

Installation:

Replace strainer for windshield washer pump.

If necessary, coat sealing ring of windshield washer pumps with antiseize agent.

Ensure hose is laid without kinks.
