51 47 161 Removing and installing / replacing right luggage compartment wheel arch trim

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove trim for tail panel, refer to 51 46 050 REMOVING AND INSTALLING / REPLACING TRIM FOR REAR PANEL AT TOP
Remove flap in right luggage compartment wheel arch trim. Refer to 51 47 172 REMOVING AND INSTALLING / REPLACING FLAP IN LUGGAGE COMPARTMENT TRIM, LEFT OR RIGHT .

E66 with rear A/C system only:

Remove luggage compartment partition wall. See51 47 140 Removing and installing / replacing panel for luggage compartment partition

Lever out trim (1) in lashing eye at opening and remove.

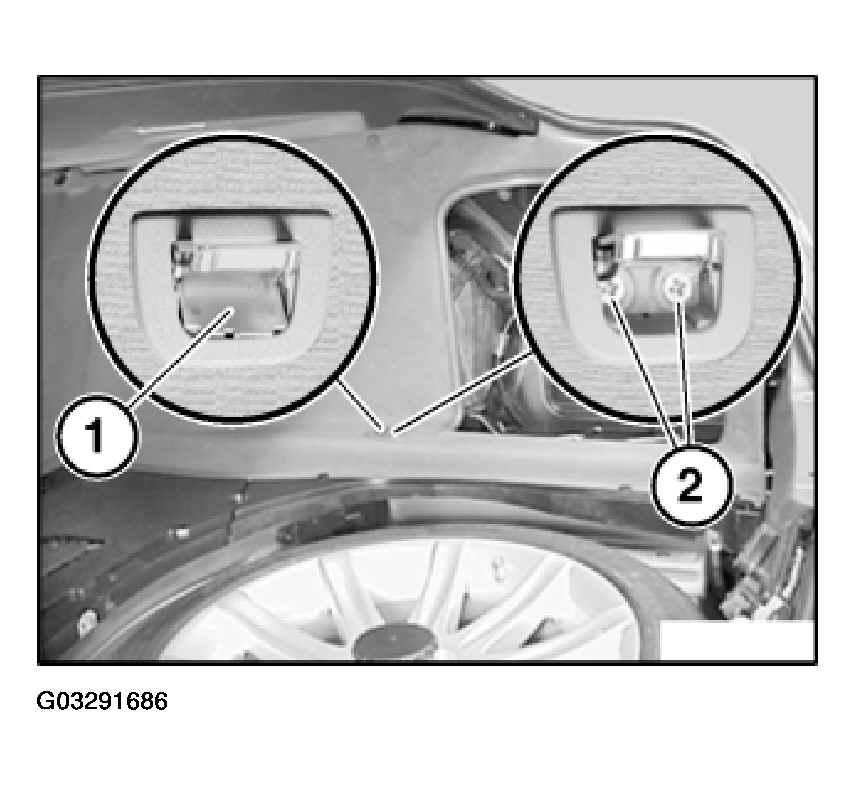

Fig 1: Releasing Screws And Removing Lashing Eye

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2) and remove lashing eye.

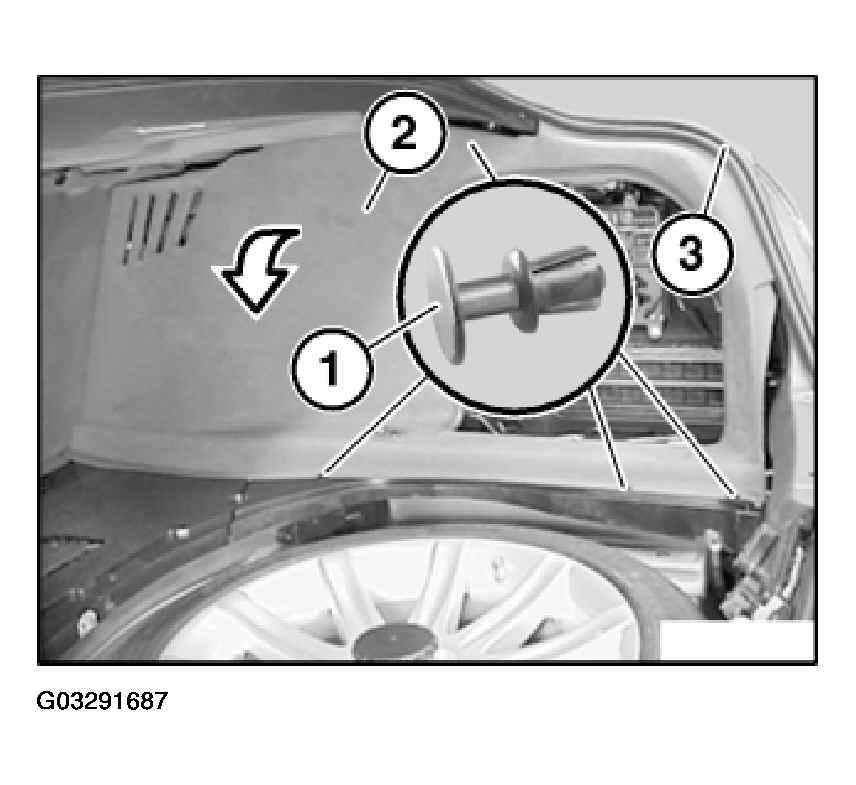

Fig 2: Removing Luggage Compartment Wheel Arch Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Release expansion rivets (1).

Lever out luggage compartment wheel arch trim (2) from seal (3) and remove.

Installation:

Frame (1) must be correctly clipped into place on luggage compartment wheel arch trim (2).

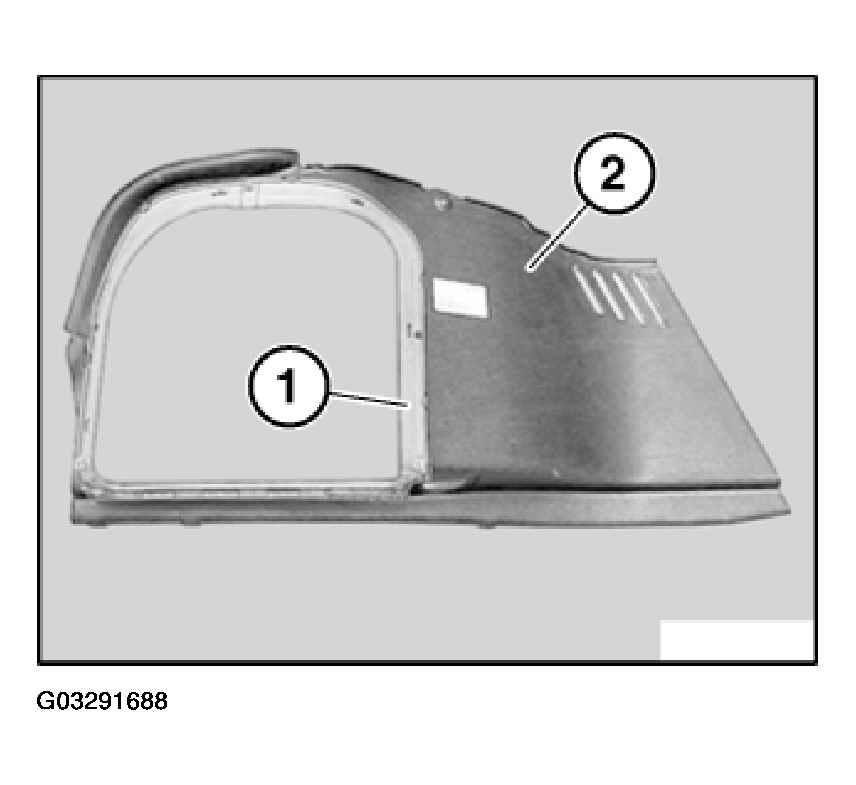

Fig 3: Identifying Frame

Courtesy of BMW OF NORTH AMERICA, INC.
