61 31 176 Removing and installing/replacing emergency call button

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Lever out housing (1) with special tool 00 9 317 as illustrated.

Unlock emergency call button plug connection underneath and disconnect.

Remove complete housing (1) from panel for rear storage box (2).

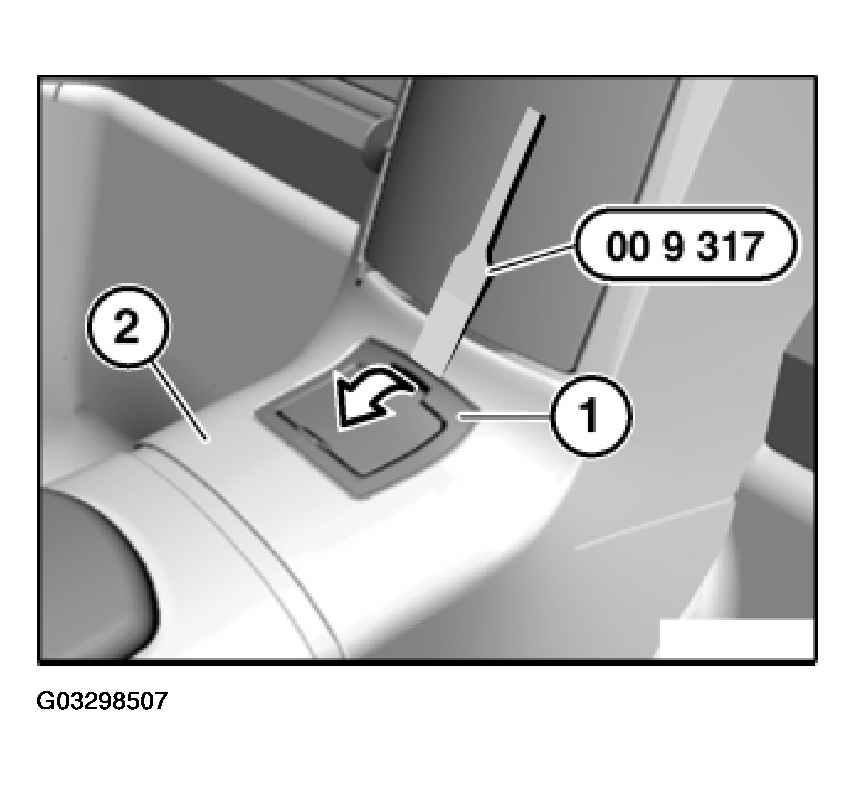

Fig 1: Removing Complete Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip emergency call button (1) in direction of arrow from housing (2) and remove.

Fig 2: Uncliping Emergency Call Button

Courtesy of BMW OF NORTH AMERICA, INC.
