51 16... Removing and installing cover on panel for rear storage box

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

If necessary, actuate emergency release cable from luggage compartment.

Open lid on storage box.

Release expansion rivets (1).

Unclip cover (2) and remove.

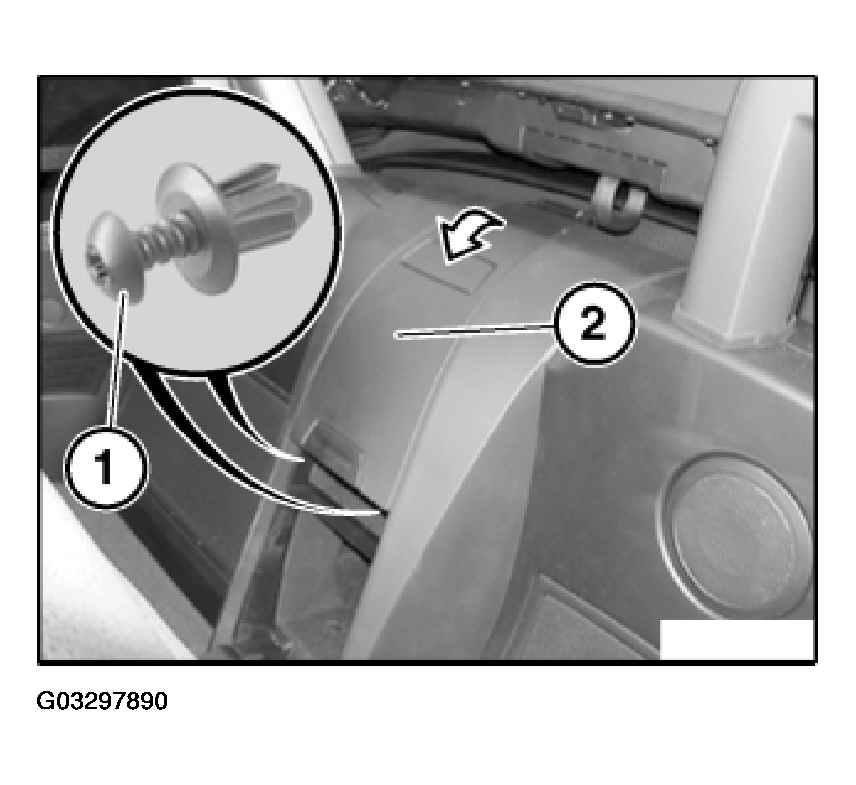

Fig 1: Releasing Expansion Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts of cover (3) must not be damaged or missing:

Catches
Mounts for expansion rivet

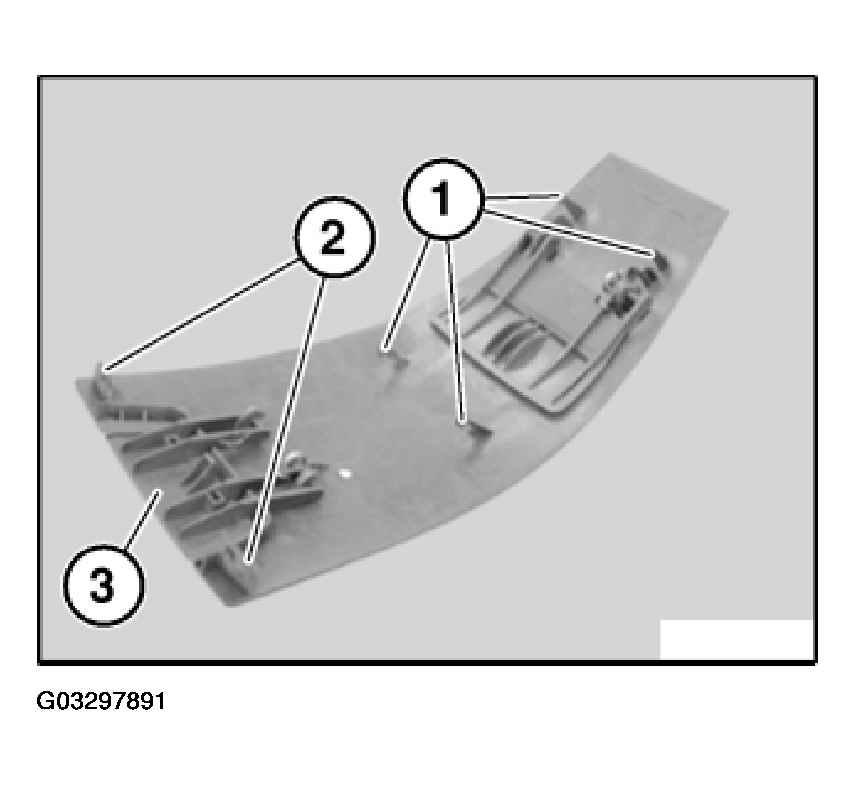

Fig 2: Locating Catches And Mounts For Expansion Rivet
Courtesy of BMW OF NORTH AMERICA, INC.
