51 16 239 Removing and installing/replacing lid on rear storage box

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Wire (3) of dia. 1.9 mm and approx. 60 mm in length is required.

Unlock lid (1) and open approx. 150 mm.

Slide wire (3) into bore (2) and release lid (1).

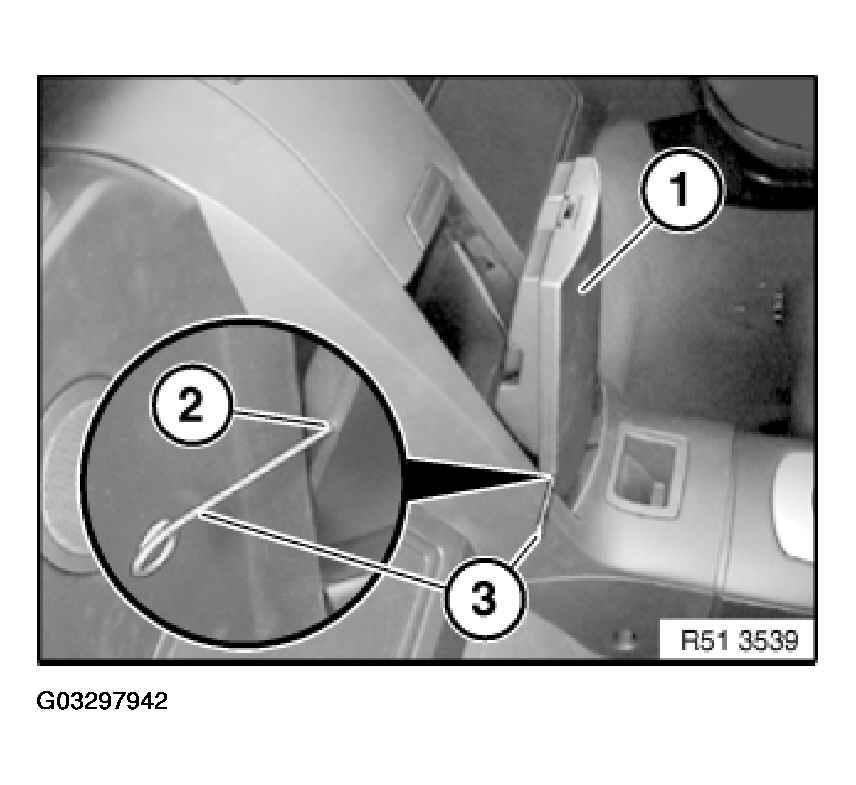

Fig 1: Sliding Wire Into Bore And Releasing Lid

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Lid (3) must not be completely open.
Do not open lid (3) further (risk of damage).

Release screws (5) on bearing (2).

In this position, pull lid (3) with bearings (2) in direction of arrow out of mountings (1).

If necessary, disconnect plug connections from additional equipment.

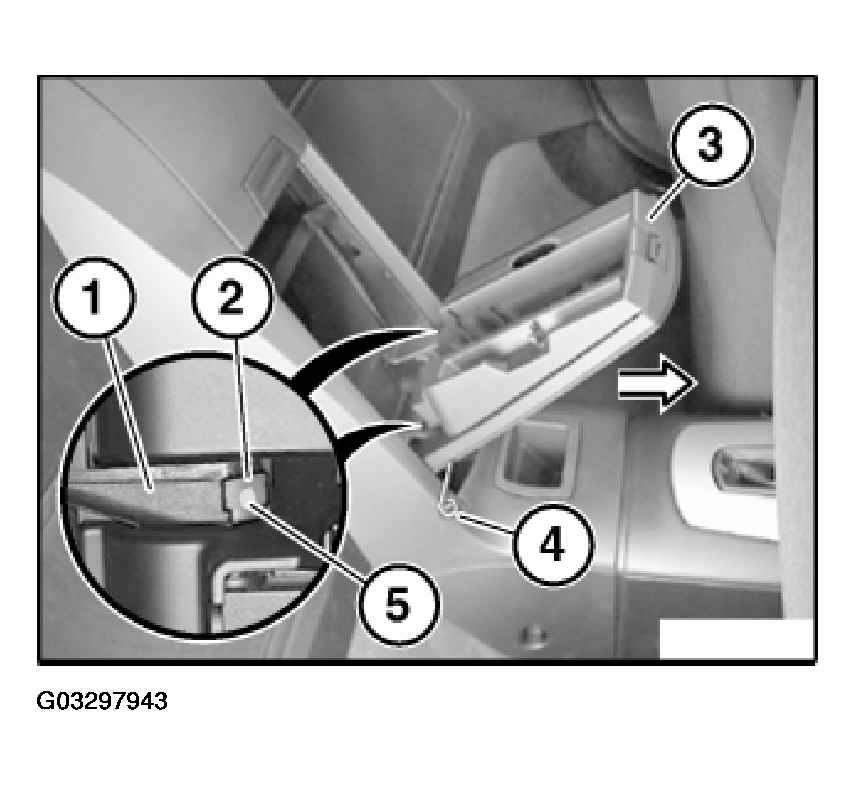

Fig 2: Releasing Screws On Bearing

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Do not pull out wire (4).

If necessary, turn shaft at square with open-end wrench upwards slightly and slide wire (4) into bore.

If necessary, replace defective bearings (2).

Attach left/right bearings (2) correctly to shaft (1).

Opening on bearing (2) points downwards slightly.

Tighten screws (5) after fitting lid to specified torque,

Tightening torque, see 51 16 1AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

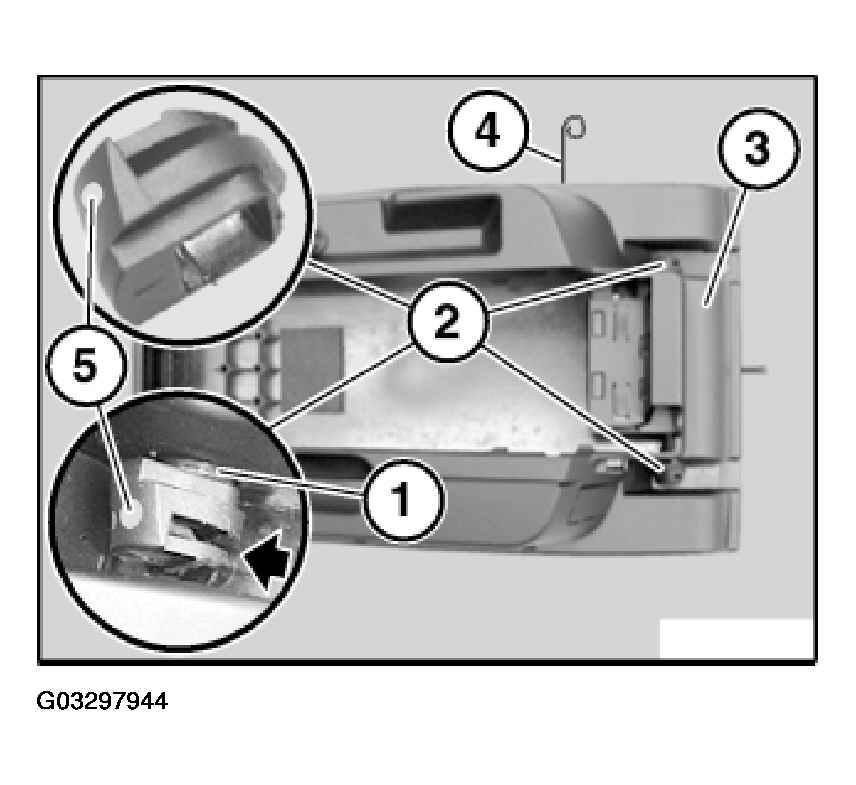

Fig 3: Attaching Left/Right Bearings Correctly To Shaft

Courtesy of BMW OF NORTH AMERICA, INC.
