63 21 180 Removing And Installing/Replacing Left Or Right Rear Light (On Side Panel)
WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on protection against electrostatic damage (ESD protection). Refer to 61 35 ... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE)
.
Open flap in luggage compartment panel.

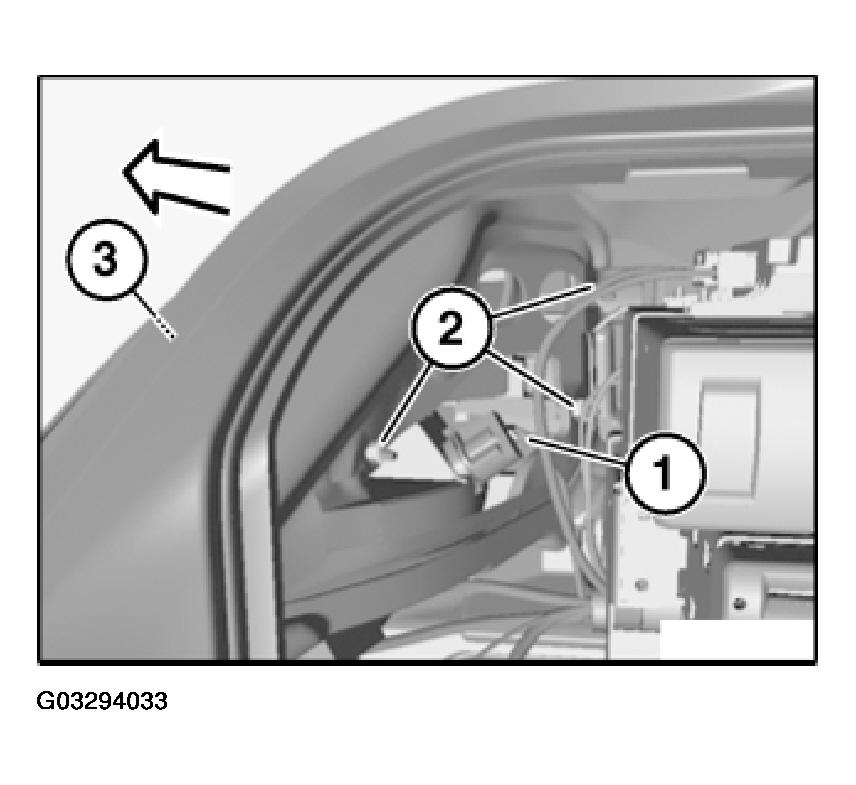

Disconnect plug connection (1).
Release nuts (2) and remove outer rear light (3) in direction of arrow.
Installation:
Make sure gap (outer) is uniform all round between rear light (3) and side panel.
Make sure sealing frame is correctly seated; replace if necessary. Refer to 63 21 101 REPLACING SEALING FRAME FOR LEFT OR RIGHT REAR LIGHT (ON SIDE PANEL) .
Replacement:
- If necessary, remove bulbs. Refer to 63 99 315 REPLACING BULB(S) FOR LEFT OR RIGHT REAR LIGHT (FROM 03/2005) .
- Remove socket housing for rear light. Refer to 63 21 055 REPLACING A SOCKET HOUSING FOR LEFT OR RIGHT REAR LIGHT (ON SIDE PANEL) .
