63 99 315 Replacing Bulb(s) For Left Or Right Rear Light (From 03/2005)

WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (exterior lights). Refer to 63 99 ... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Rear Light In Side Panel:

Open flap in luggage compartment panel.

Turn socket housing (1) for turn indicator light and pull out.

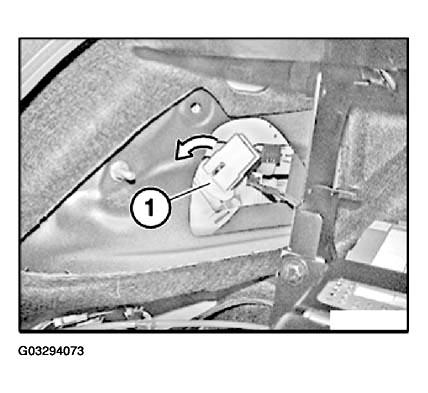

Fig 1: Turn Indicator Light Socket Housing And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

Rear Light In Rear Lid:

Open flap in rear lid panel.

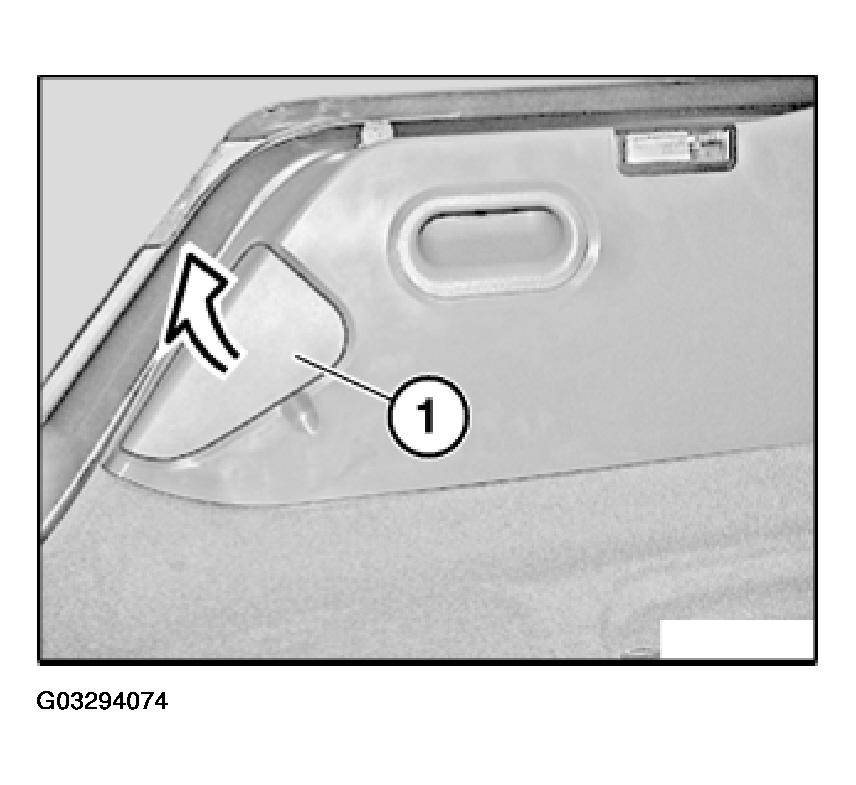

Fig 2: Rear Lid Panel Flap And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

Turn socket housing (1) for rear fog light and pull out.

Pull out socket housing (2) for reversing light.

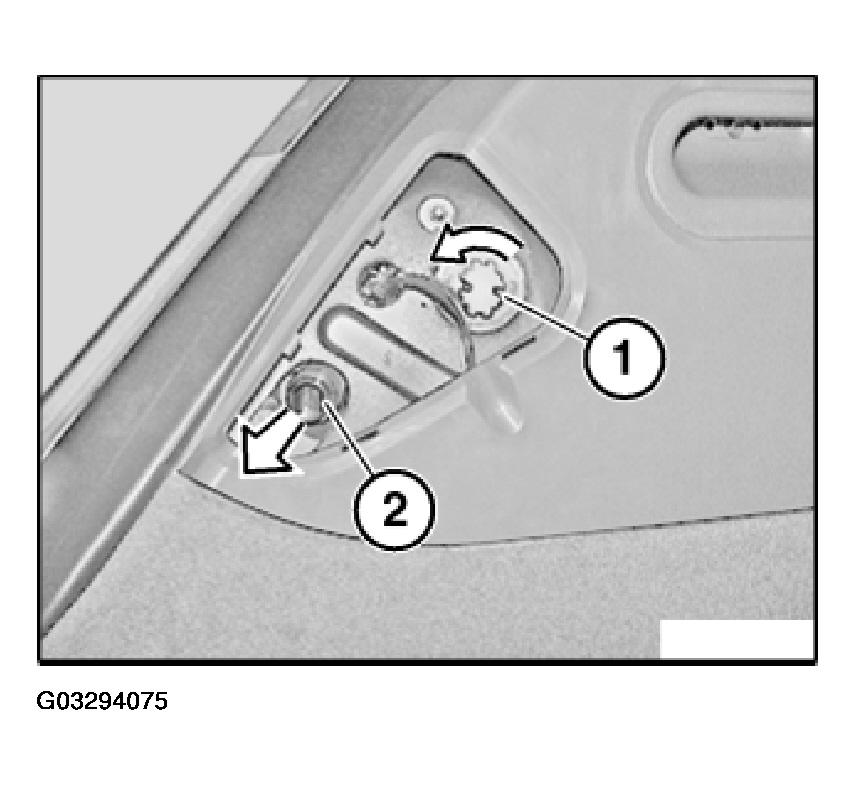

Fig 3: Rear Light And Reversing Light Socket Housings

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Note bulb type. Refer to LIGHTS - TECHNICAL DATA .
