63 21 055 Replacing A Socket Housing For Left Or Right Rear Light (On Side Panel)

WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (exterior lights). Refer to 63 99 ... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Open flap in luggage compartment panel.

Turn socket housing for rear light (1) in direction of arrow and remove.

Remove bulb from socket housing for rear light (1).

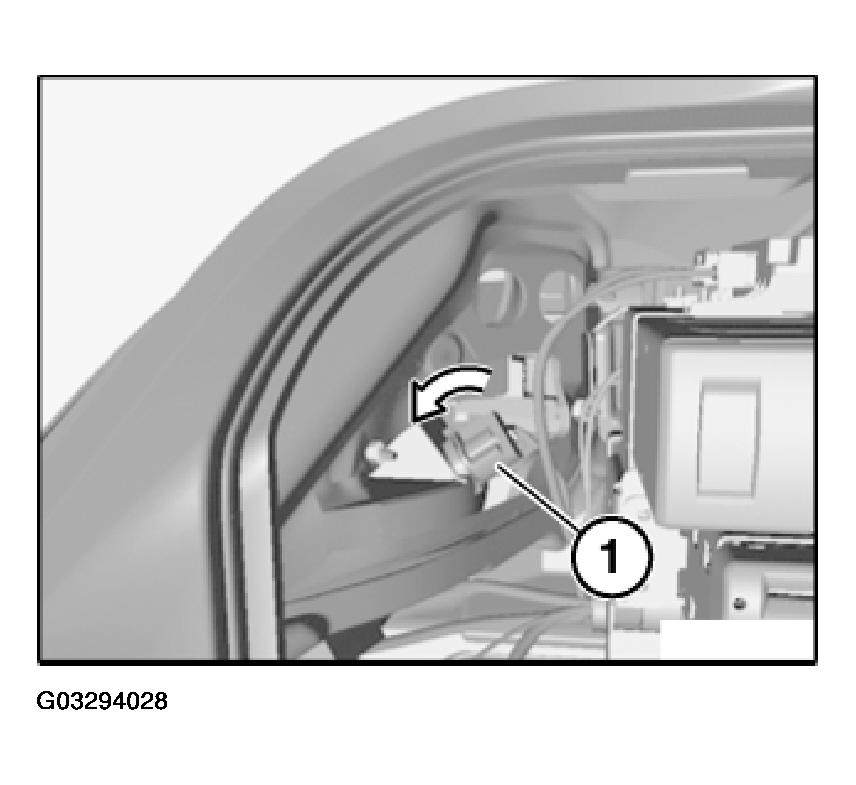

Fig 1: Rear Light Socket Housing And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.
