63 21 101 Replacing Sealing Frame For Left Or Right Rear Light (On Side Panel)
WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove left or right rear light. Refer to 63 21 180 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT REAR LIGHT (ON SIDE PANEL) .

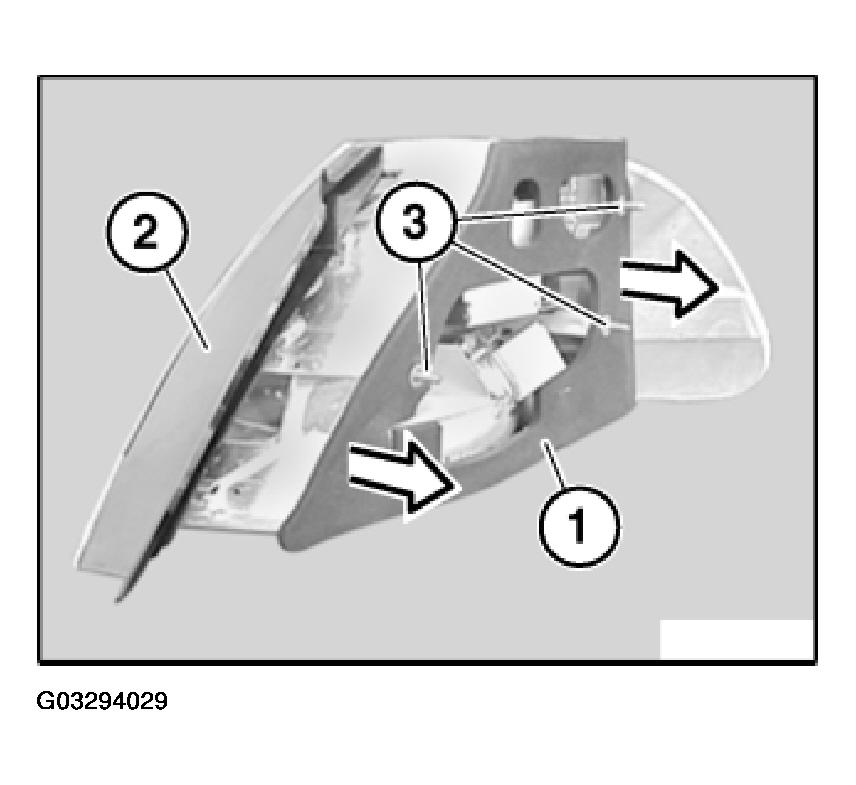

Detach sealing frame for rear light (1) in direction of arrow from rear light (2).
Installation:
Sealing frame (1) is centered by way of openings for threaded pins (3).
Make sure sealing frame (1) is correctly bonded all round on rear light (2).
