63 12 001 Removing And Installing/Replacing Left Headlight (Up To 03/2005)

WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove front bumper trim. Refer to 51 11 156 REMOVING AND INSTALLING FRONT BUMPER TRIM .

Unlock and disconnect all plug connections (1) on headlight (2).

Fig 1: Plug Connections And Headlight

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on headlight (2).

Installation:

Tighten screws (1) hand-tight only.

Pull headlight fully towards front.

Close hood/bonnet and adjust headlight to fit.

Open hood/bonnet and tighten down screws (1).

Fig 2: Retaining Screws And Headlight

Courtesy of BMW OF NORTH AMERICA, INC.

Remove headlight (1) towards front.

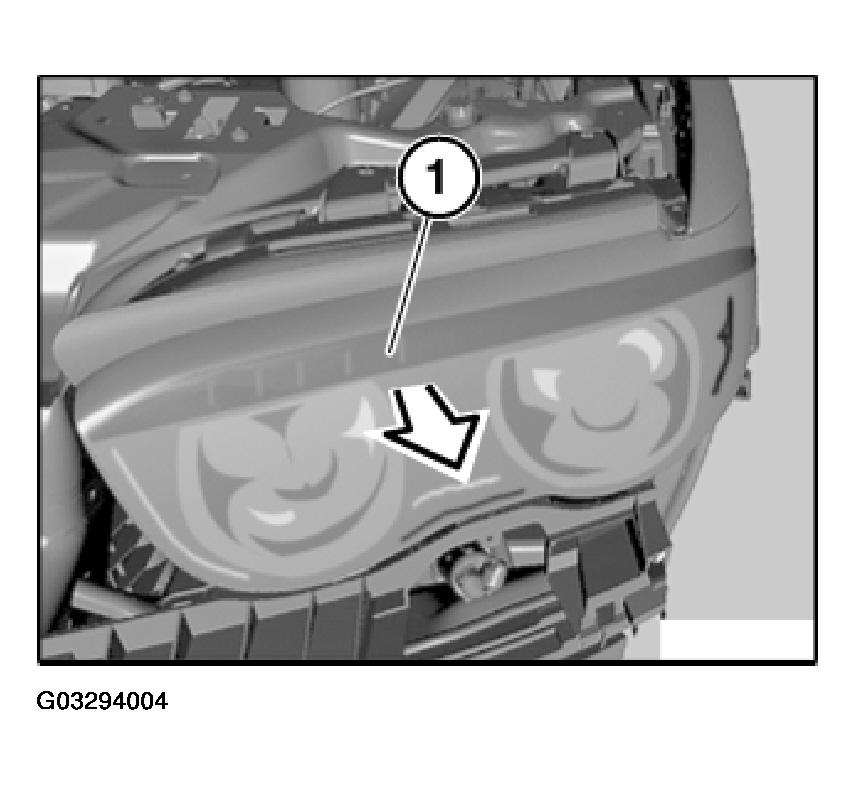

Fig 3: Headlight And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Follow instructions for handling light bulbs (exterior lights). Refer to 63 99 ... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Replacement:

If necessary, remove bulbs. Refer to 63 99 076 REPLACING LEFT LAMP FOR LEFT XENON LIGHT , or 63 99 077 REPLACING RIGHT LAMP FOR XENON LIGHT or 63 99 273 REPLACING BULB FOR TURN INDICATOR, FRONT LEFT .

Installation:

Adjust headlight. Refer to 63 10 004 ADJUSTING HEADLIGHTS .
