63 99 076 Replacing Left Lamp For Left Xenon Light

WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (exterior lights). Refer to 63 99 ... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Necessary Preliminary Tasks:

Remove ignition unit for left xenon headlight.63 12 870 REPLACING IGNITION UNIT FOR LEFT XENON HEADLIGHT (UP TO 03/2005) .

Turn retaining ring of lamp for xenon light (1) in direction of arrow and remove.

Remove lamp for xenon light (2).

Installation:

Note type of bulb. Refer to LIGHTS - TECHNICAL DATA

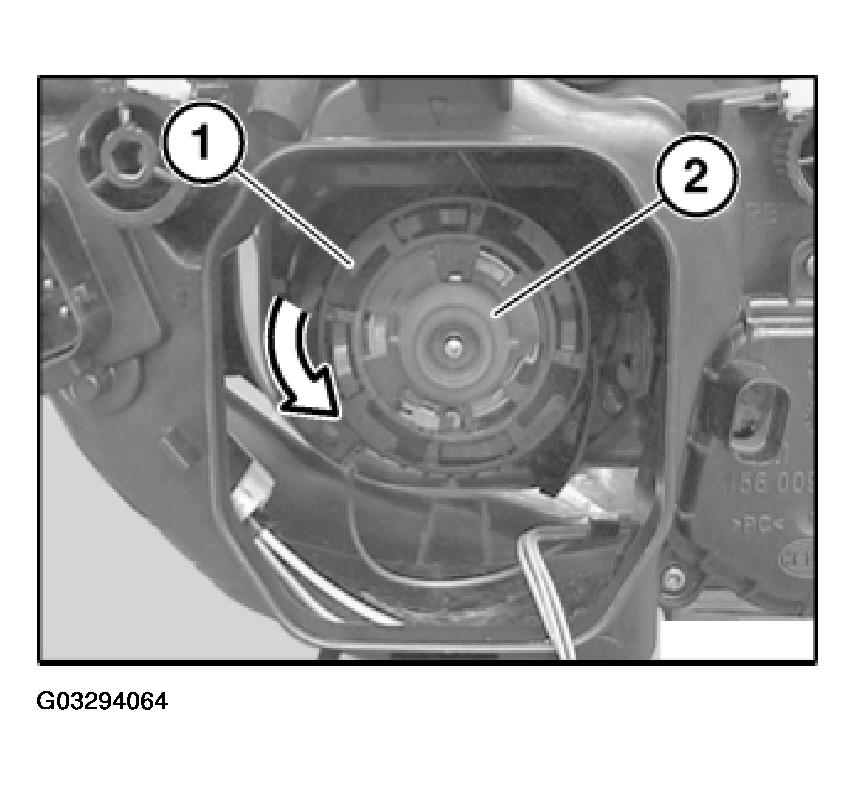

Fig 1: Retaining Ring, Xenon Light Lamp And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert lamp for xenon light (1) exactly in fixture (2).

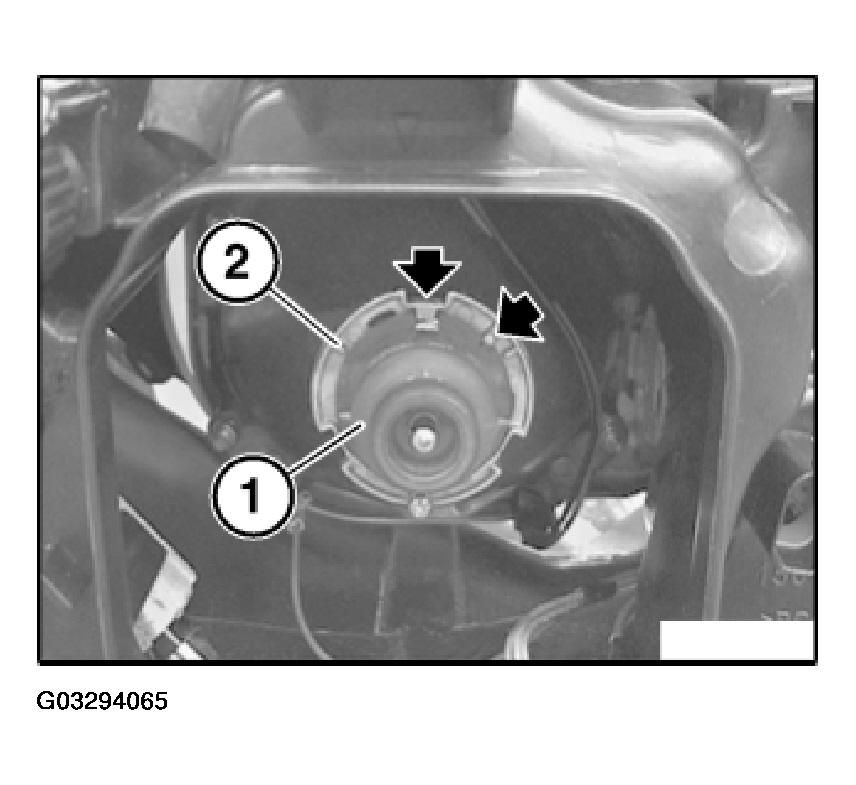

Fig 2: Xenon Light Lamp And Fixture

Courtesy of BMW OF NORTH AMERICA, INC.
