52 25 055 Removing And Installing/Replacing Gear For Headrest Adjustment
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove rear head restraint. Refer to 52 24 390 REMOVING AND INSTALLING/REPLACING REAR LEFT OR RIGHT HEAD RESTRAINT (NORMAL) .
- Remove supplementary trim on C-pillar at bottom. Refer to 51 43 240 REMOVING AND INSTALLING/REPLACING SUPPLEMENTARY TRIM ON C-PILLAR AT BOTTOM (WITH ELECTRIC REAR SEAT ADJUSTMENT) ON LEFT OR RIGHT .
- Remove trim for armrest at rear. Refer to 52 25 030 REMOVING AND INSTALLING COMPLETE ARMREST FOR REAR SEAT BACKREST .
- Remove rear panel on rear seat backrest. Refer to 52 25 ... REMOVING AND INSTALLING/REPLACING REAR PANEL ON REAR SEAT BACKREST .
- Remove four-bar lever on rear seat backrest. Refer to 52 25 018 REMOVING AND INSTALLING/REPLACING FOUR-BAR LEVER ON LEFT OR RIGHT REAR SEAT BACKREST .

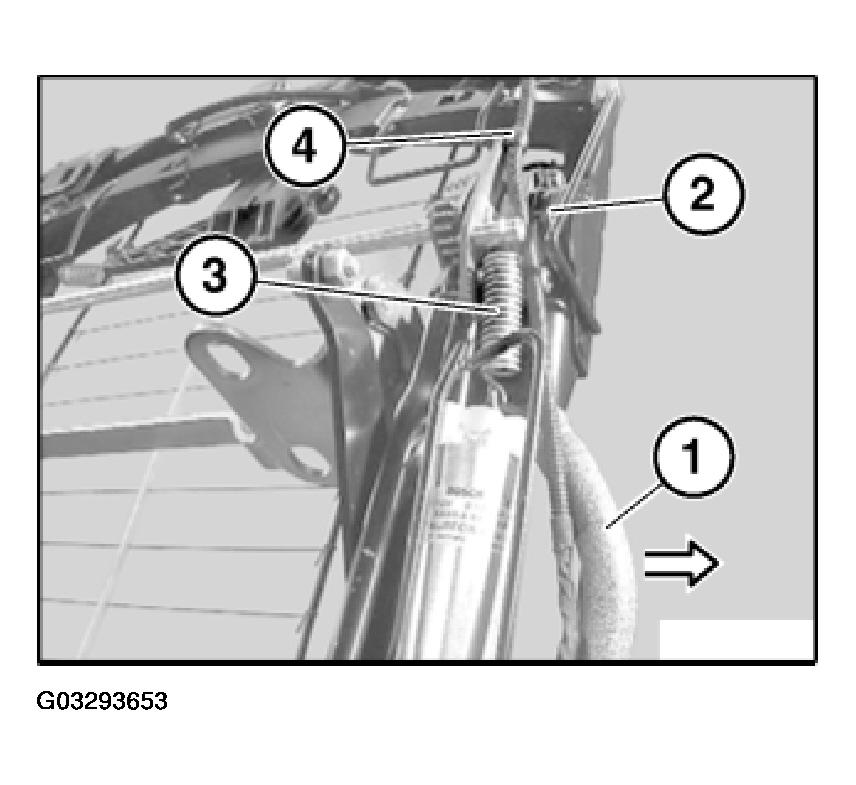

Bend shaft (1) in direction of arrow and pull out of gear (2).
Disconnect spring (3) on left and right and remove.
Unclip wiring harness (4).

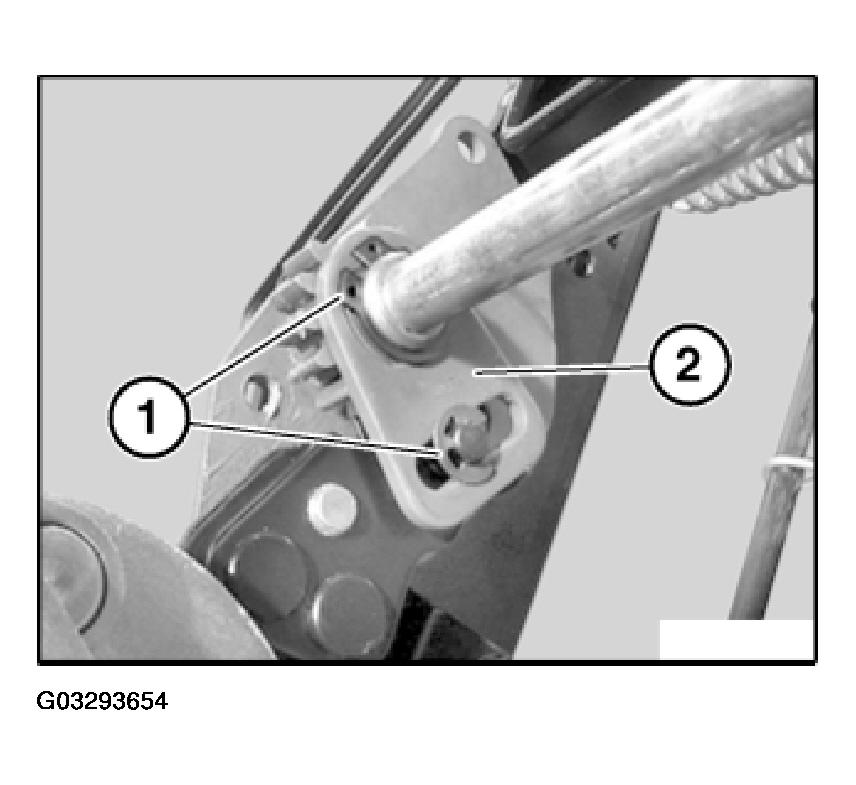

Release snap rings (1) on left and right.
Detach component (2) on left and right.

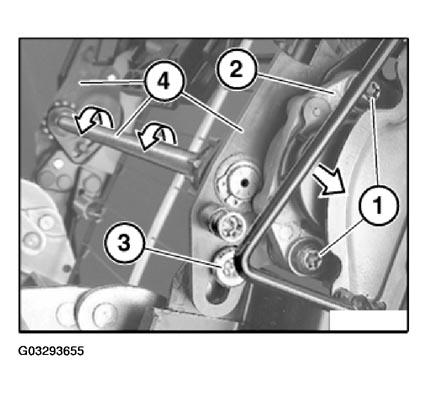

Release screws (1).
Rotate shaft with carrier plates (4) in direction of arrow up to stop and remove gear (2).
Replacing shaft for backrest head adjustment:
Release screws (3) on left and right and remove shaft with carrier plates (4).
