51 41 001 Replacing Front Left Or Right Door Trim

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove airbag module in front door.
Remove wooden strip in door trim (front). Refer to 51 41 065 REMOVING AND INSTALLING/REPLACING WOODEN STRIP ON LEFT OR RIGHT DOOR TRIM (FRONT) .
Remove chest strip (chrome strip). Refer to 51 41 300 REMOVING AND INSTALLING/REPLACING CHEST STRIP (CHROME STRIP) ON LEFT OR RIGHT FRONT DOOR .
Remove decorative strip (light strip). Refer to 51 41 030 REMOVING AND INSTALLING/REPLACING DECORATIVE STRIP (LIGHT STRIP) ON LEFT OR RIGHT DOOR TRIM (FRONT) .
Remover inside door opener. Refer to 51 21 225 REMOVING AND INSTALLING OR REPLACING INSIDE DOOR OPENER IN LEFT OR RIGHT FRONT DOOR .
Remove air outlet trim and air duct. Refer to 51 41... REMOVING AND INSTALLING/REPLACING AIR DUCT ON FRONT LEFT OR RIGHT DOOR TRIM .
Remove footwell light. Refer to 63 31 020 REMOVING AND INSTALLING/REPLACING FOOTWELL LIGHT .

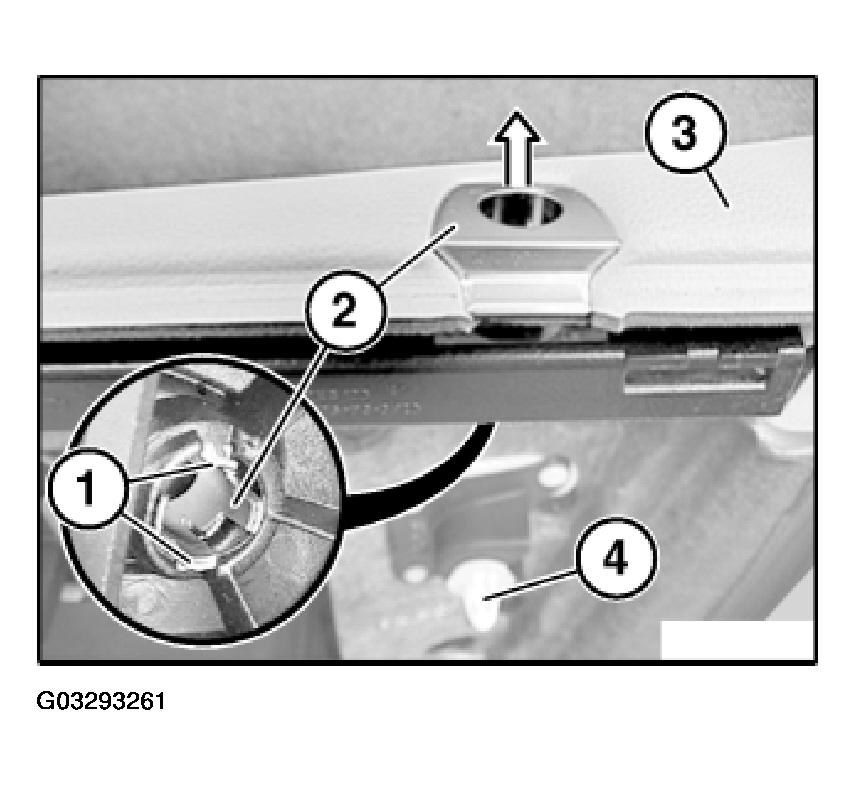

Unlock catches (1) and remove trim (2) in direction of arrow from door trim (3).

Replace all clips (4).

Feed out airbag label and remove.

Fig 1: Locating Catches

Courtesy of BMW OF NORTH AMERICA, INC.

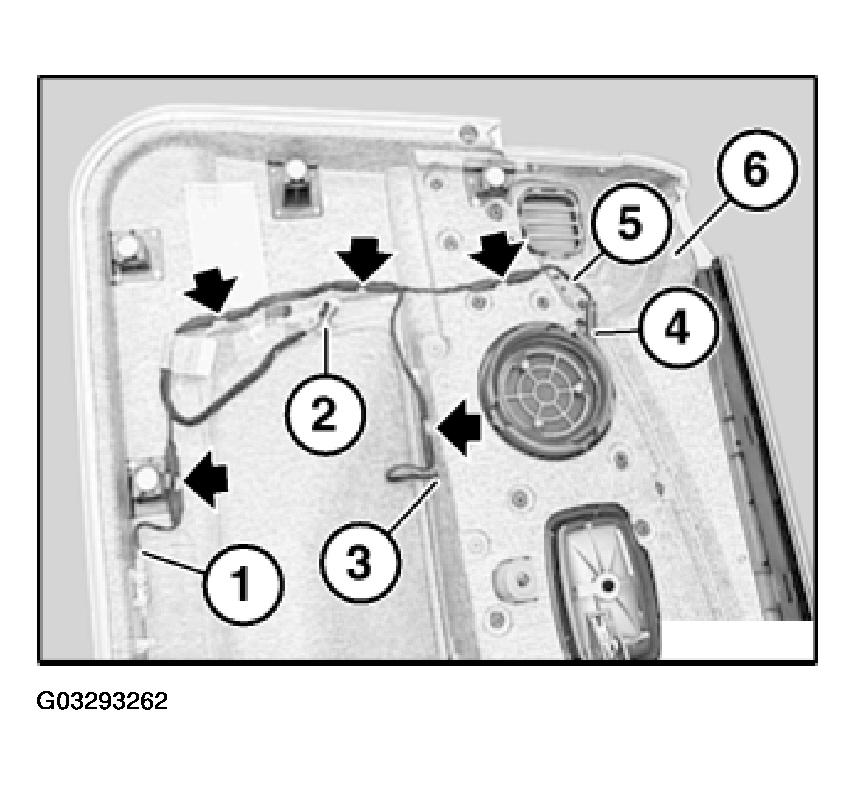

Unclip wiring harness (5) from door trim (6).

Plug connections:

Footwell lighting.
Control unit.
Rocker switch for window operation.
Decorative strip (light strip).

Fig 2: Identifying Wiring Harness In Door Trim
Courtesy of BMW OF NORTH AMERICA, INC.
