63 31 020 Removing And Installing/Replacing Footwell Light

WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

In Footwell:

Lever footwell light (1) in direction of arrow out of panel for pedals (2).

Disconnect plug connection behind and remove footwell light (1).

Fig 1: Footwell Light, Pedals Panel And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

In Door:

Lever footwell light (1) in direction of arrow out of door trim (2).

Disconnect plug connection behind and remove footwell light (1).

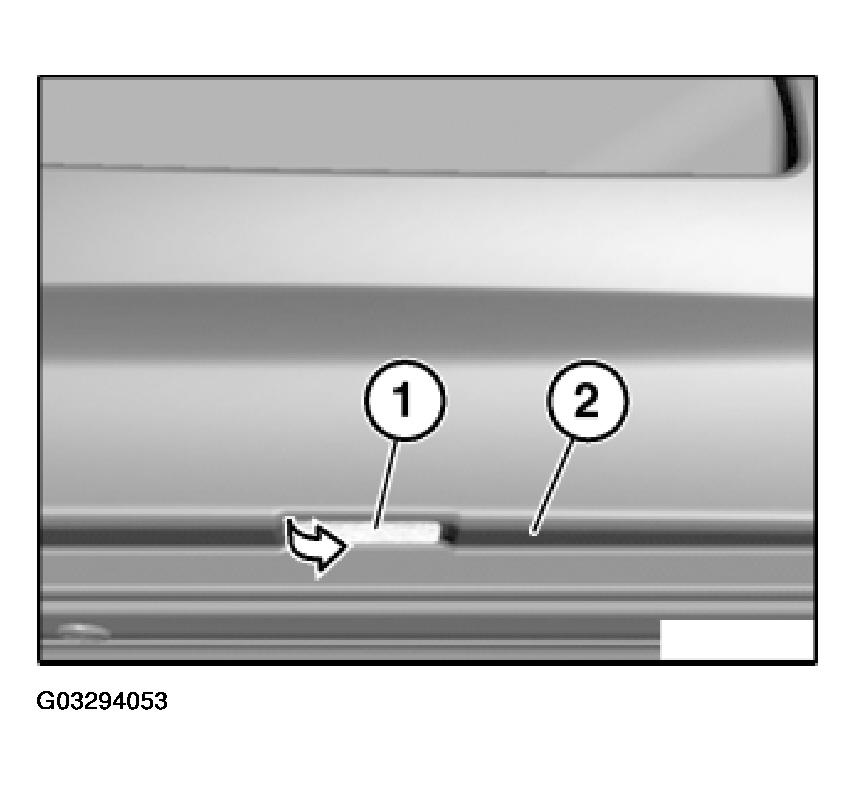

Fig 2: Footwell Light And Door Trim

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Follow instructions for handling light bulbs (interior lights). Refer to 63 99 ... INSTRUCTIONS FOR REPLACING LIGHT BULBS (INTERIOR LIGHTS) .

Replacement:

If necessary, remove bulb.
