51 41 030 Removing And Installing/Replacing Decorative Strip (Light Strip) On Left Or Right Door Trim (Front)

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove front door trim panel. Refer to 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL .

Pull back foam section over plug (1).

Unlock plug (1) and detach from light strip (2).

Release screws (3).

Installation:

Tightening torque, refer to 51 41 5AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

Fig 1: View Of Light Strip Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out decorative strip (1) at rear and front from door trim (2).

Installation:

Insert guides (3) correctly in mountings (4) of air inlet trim (5).

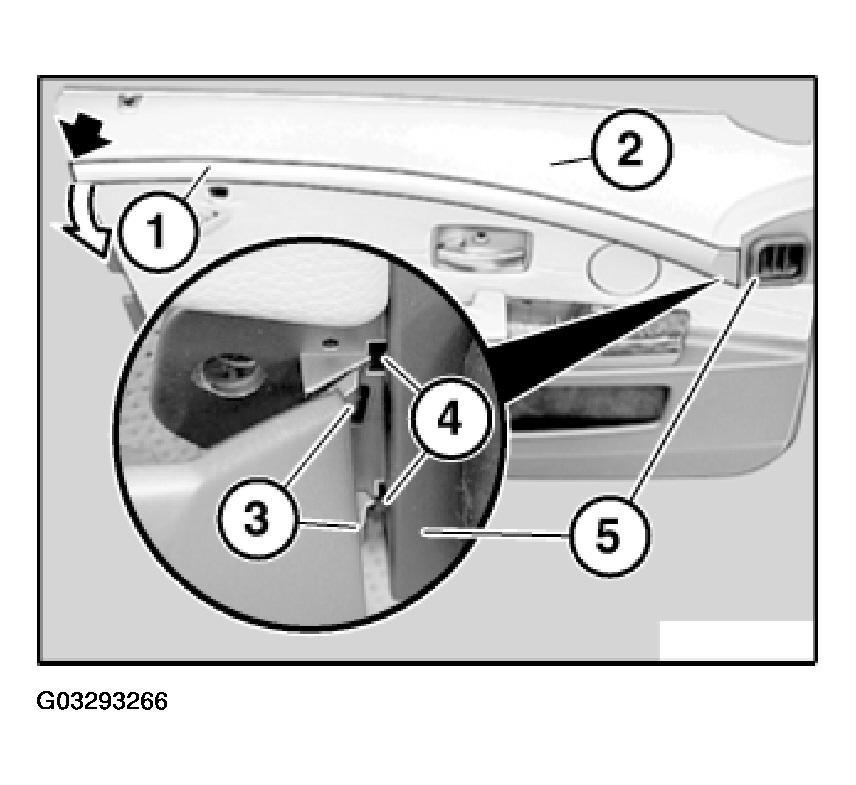

Fig 2: Identifying Decorative Strip In Door Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Slide light strip (2) in decorative strip (4) fully towards rear.

Following parts of decorative strip (4) must not be damaged:

Guides.
Light strip.
Screw connections.

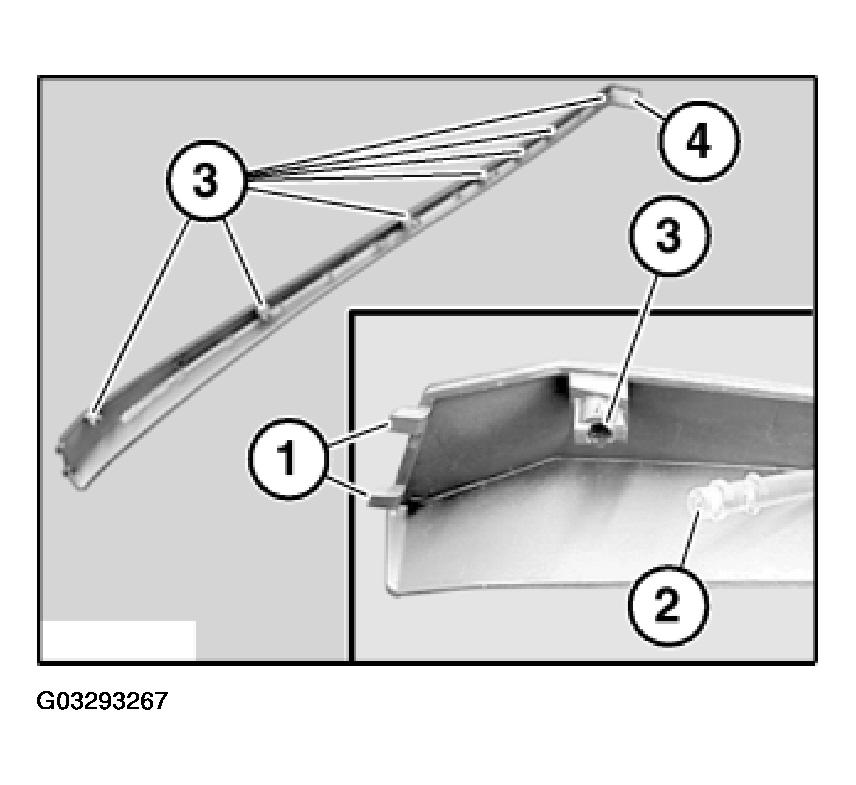

Fig 3: Locating Light Strip, Guides And Screw Connections
Courtesy of BMW OF NORTH AMERICA, INC.
