11 51 000 Removing And Installing/Replacing Water Pump (N73)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of scalding! Only perform these tasks on an engine that has cooled down.

Recycling:

Catch and dispose of drained coolant.

Observe country-specific waste-disposal regulations.

Necessary Preliminary Tasks:

Remove fan cowl. Refer to 17 11 031 REPLACING FAN COWL (N73) .
Remove alternator drive belt. Refer to 11 28 010 REPLACING ALTERNATOR DRIVE BELT (N73) .
Remove A/C compressor drive belt. Refer to 11 28 050 REPLACING A/C COMPRESSOR DRIVE BELT (N73) .
Remove vibration damper. Refer to 11 23 010 REMOVING AND INSTALLING/REPLACING VIBRATION DAMPER (N73) .

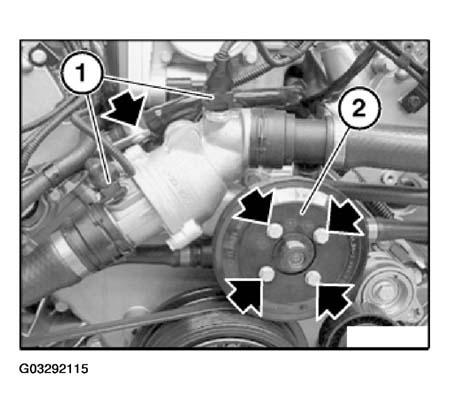

Disconnect plug connections (1).

Release screws and remove belt pulley (2).

Unlock and detach both coolant hoses on water pump.

Fig 1: Locating Belt Pulley Retaining Screws

G03292115

Courtesy of BMW OF NORTH AMERICA, INC.

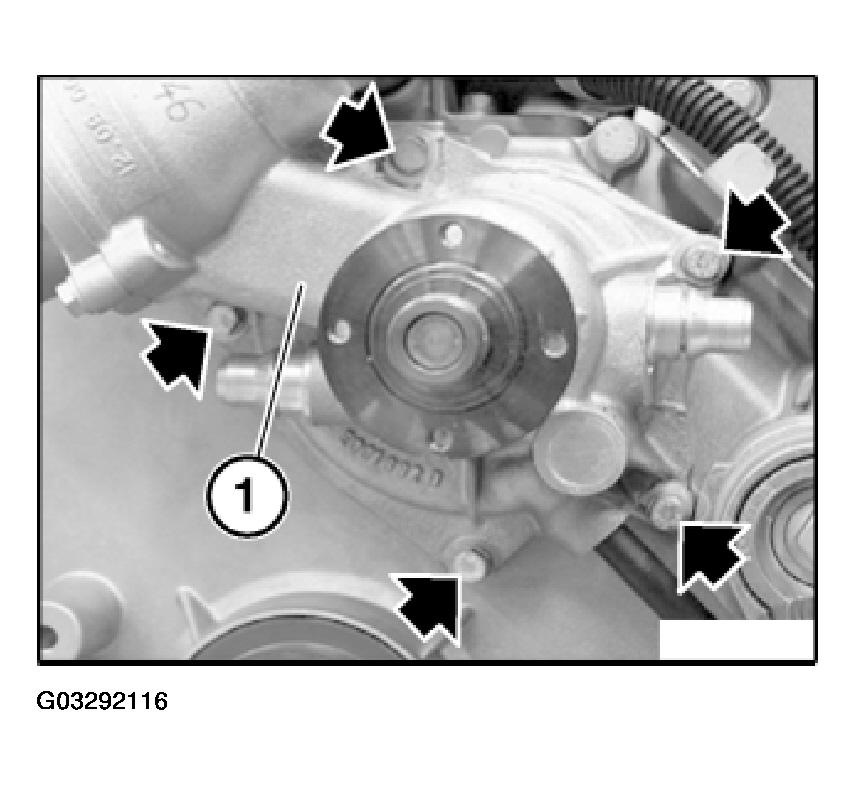

Release screws and remove water pump (1).

Fig 2: Identifying Water Pump Retaining Screws

G03292116

Courtesy of BMW OF NORTH AMERICA, INC.

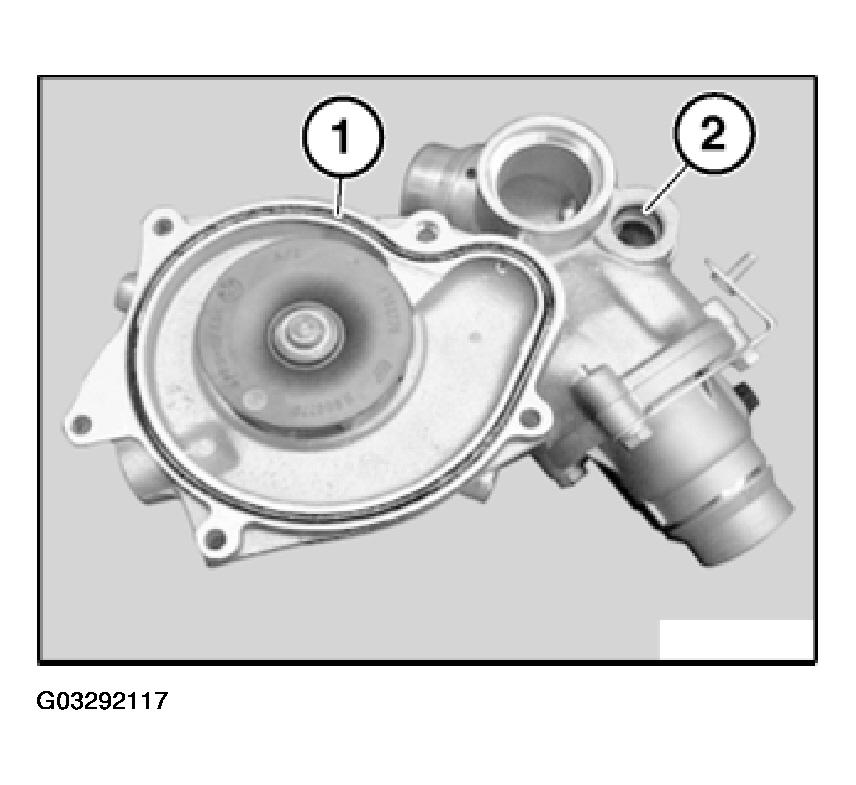

Clean sealing faces (1 and 2).

Installation:

Replace all gaskets and sealing rings, replace water pump if necessary.

Fig 3: View Of Sealing Faces

G03292117

Courtesy of BMW OF NORTH AMERICA, INC.

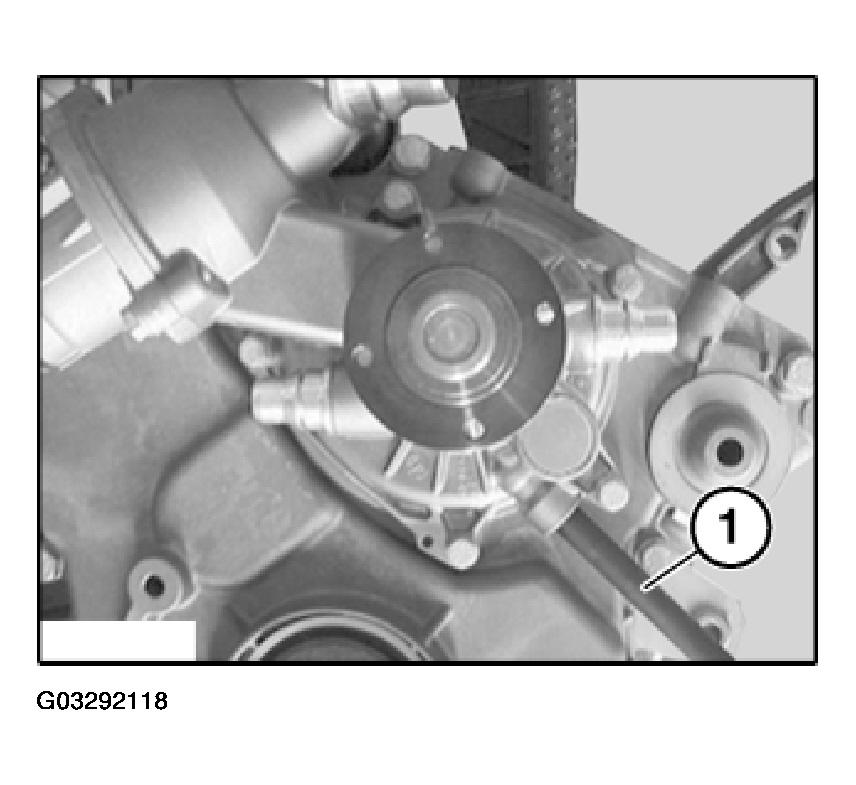

Replace connecting pipe (1) to alternator.

Installation:

Coat sealing surfaces of connecting pipe (1) with anti-friction rubber coating.

Fig 4: Replacing Alternator Connecting Pipe

G03292118

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

When replacing water pump:

Convert coolant thermostat.

Convert water temperature sensor.

Assemble engine.

Check cooling system for leaks. Refer to 17 00 039 VENTING COOLING SYSTEM AND CHECKING FOR LEAKS (N73) .
